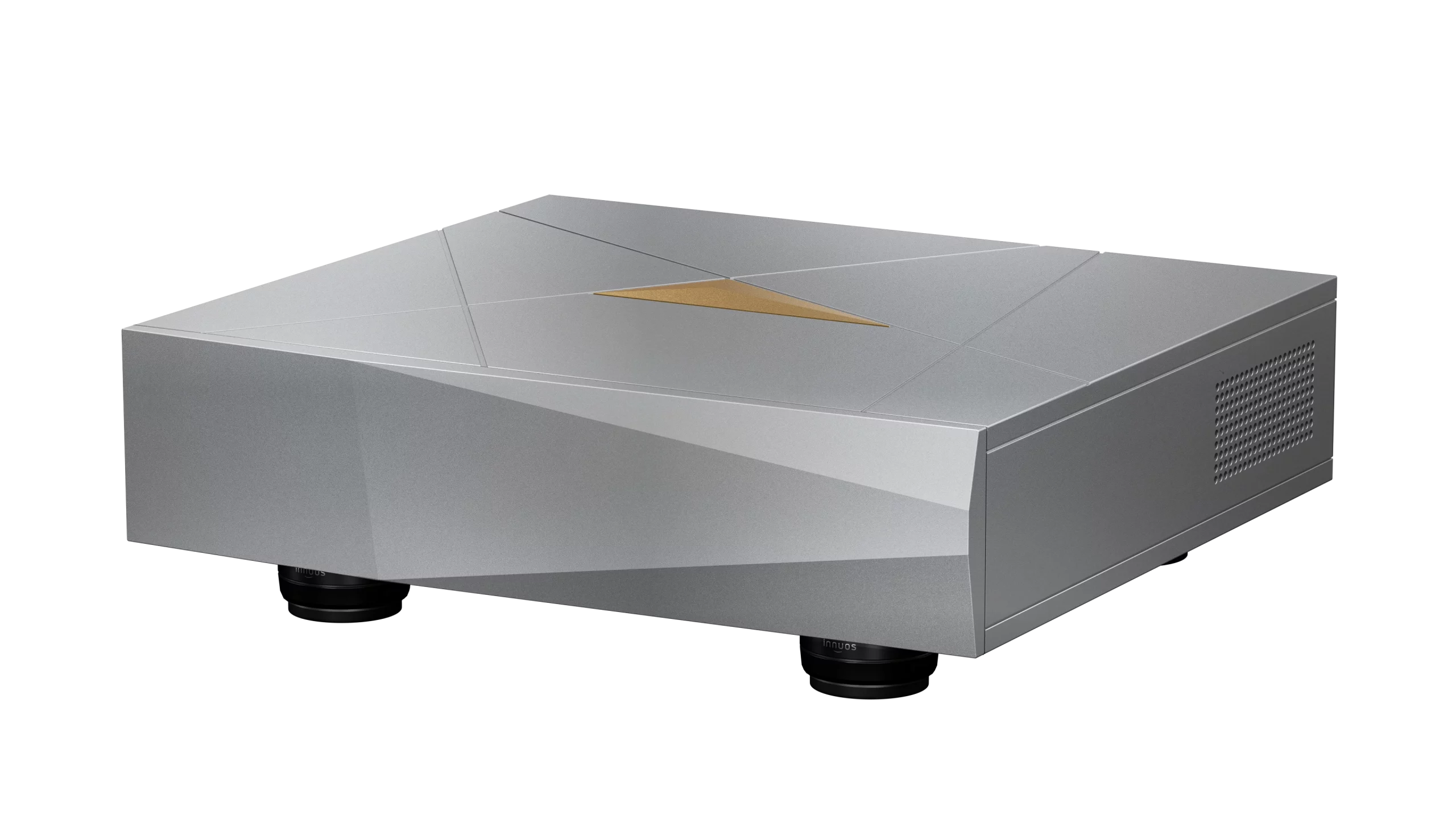

Innuos NazaréFLOW Digital Audio Reclocker
$39,000.00
-
Free Shipping
-
Signal improvement Upstream:
The NazaréFLOW is a high-end digital audio reclocker designed to provide the cleanest and most well-timed signal to a DAC. The NazaréFLOW separates the DAC connection from the complex electronics of the streamer or server by regenerating the signal both from a timing and power perspective. This is done by the Master Reclocker Circuit with an ultra-high precision OCXO clock that acts as a single master clock for all digital data communication.
Workload reduction for your DAC:
The NazaréFLOW further improves performance by using custom Innuos-designed modular DAC outputs that leverage the internal protocols of dedicated DACs such as MSB and CH Precision (with more to come) to minimize processing on the DAC. The result is an increased sense of immersion and realism. Sound becomes palpable and alive.
Compatible with any USB Source:
The NazaréFLOW is designed as the perfect companion for the Innuos NAZARÉ or any music server or streamer with USB audio output. NazaréFLOW also supports dedicated output modules, including ProISL for MSB and CH-Link for CH Precision, and is compatible with NAZARÉ, STATEMENT Next-Gen, or any USB-output server.
Features & Specifications
File Formats
WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF
MQA Supported
Sample Rates
PCM: Up to 32bit/768KHz
DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD
(24bit/192KHz maximum output on SPDIF module)
Connectivity
USB (for DACs, Imports, Backups, USB Drive playback)
2 x USB 3.2
1 x PreciseUSB
Network
1 x PreciseNET Gigabit Ethernet
Other
1 x Storage Expansion Bay (1 x M2 nVME SSD)
1 x HDMI (service only)
1 x AC Power Inlet
1 x 4mm Chassis Ground Port
Streaming Sources
Streaming Services*
Qobuz
TIDAL
Deezer
HighResAudio
IDAGIO
Spotify Connect
TIDAL Connect
Qobuz Connect
Internet Radio & Podcasts
Radio Paradise FLAC and Interactive services
Local Music Files
Internal M2 NVMe SSD
NAS Drives/Servers
USB Drives**
*Premium subscriptions required
**’Folder View’ only, full library integration unavailable
CD Ripping
Available via external USB Optical Drive + installed SSD storage
Metadata Sources: Discogs, FreeDB, GD3, Musicbrainz
Ripping format options: FLAC or WAV
Control Software & Integrations
Innuos Sense App for iPadOS/iOS v16.6 (or later)
Innuos Sense App for Android 7 (or later)
Innuos Sense App for Amazon Fire OS 7 (or later)
Any web browser via my.innuos.com or IP address.
Optional:
Roon (Core and Endpoint modes supported)
HQPlayer (NAA Endpoint mode only)
AssetUPnP (UPnP Server mode only)
Power
230V AC / 115V AC
Dimensions and Weight
Dimensions: 480mm x 434mm x 216mm (W x D x H)
Weight: 40.9 Kg
Contents
Nazaré
AC Power Cable (2.0m)
Ethernet Cable (2.0m)
Quick Start Guide
4 x Isolation Discs
2 x Spare Fuses
Additional Modules:
The Nazaré FLOW can also be enhanced with the two following modules:
- FLOW ProISL Module (MSB)
- FLOW CH-Link Module (CH-Precision)
Contact us for pricing – 416-689-7779
