With the Denon AVR-S570BT 8K 5.2 channel home theater receiver bring movies to life in smaller spaces with amazing 8K picture quality and true surround sound. Enjoy all your favorite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth.
True surround sound experience
Supports Dolby TrueHD and DTS-HD for high fidelity, lossless surround sound playback.
Affordable 8K
Supports the latest 8K HDMI technology so you can enjoy amazing picture quality.
Easy music streaming
Stream audio from your favorite music service via Bluetooth from any smart device with the Denon AVR-S570BT 8K 5.2 channel home theater receiver.
Lag-free gaming
Brings together the latest technologies to ensure a smooth, lag-free gaming experience.
Powerful, discrete 5-channel amplifier
With up to 130W per channel (at 6 ohms, 1kHz, THD 1%), AVR-S570BT has enough power to drive any speaker for quality sound.
Advanced 8K HDMI connection
8K/60Hz, 4K/120Hz, HLG, HDR, Dolby Vision, HDR10+ pass-through, and 8K upscaling are supported on all four HDMI inputs and one output, for maximum bandwidth up to 40Gbps on the Denon AVR-S570BT 8K 5.2 channel home theater receiver.
Enhanced gaming experiences
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) for smooth, lag-free gaming experience.
Simple, intuitive setup
Setup is simple. Our award-winning guided setup assistant provides clear, step-by-step instructions to get you started.
Front USB Port for High-Resolution Audio
Discover the incredible fidelity of high-resolution audio tracks with the ability to decode up to 24bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD) via the front panel USB port and network sources. Or, listen to other popular file types such as MP3 and AAC. Whether you want to listen to your latest download or soak in the fidelity of audiophile-quality FLAC recordings, you have quick access to your favorite songs
Features & Specifications
Weight 9.7 kg
Dimensions 523 × 339 × 215 mm
Multichannel Surround
DTS HD Master / DTS:X
Yes / No
DTS Neo:6 / DTS Neural:X
Yes / No
Dolby TrueHD / Dolby Atmos
Yes / No
Dolby ProLogic Il / Dolby Surround
Yes / No
Multichannel Stereo
Yes
Dialog Enhancer
Yes
Max. number of processing (preamp) channels
5.1
Sound Enhancements
Discrete Power Amplifier
5
Pure Direct
yes
Audyssey
MultEQ
Audyssey Dynamic EQ / Dynamic Volume
Yes / Yes
Compressed Audio Restorer
Yes
Network
HEOS Multiroom and Streaming
Yes
Lossy Formats: MP3 / WMA / AAC
Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV
Yes / Yes / Yes
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
Yes / Yes / Yes
DSD Audio Streaming
up to DSD5.6
FLAC HD 192/24
Yes
WAV 192/24
Yes
ALAC 192/24
Yes
Gapless playback
Yes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming
Yes (AirPlay2)
Roon Tested
Yes
Internet Radio
Yes (TuneIn)
Spotify Connect* / Tidal* / Deezer* / others *
Yes / Yes / Yes / Yes
Amazon Prime Music*
Yes
Compatible with Remote APP for Smart Phones
Android / iOS
Compatible with Remote APP for Tablets
Android / iOS/Amazon Kindle
Ethernet Ports
Yes
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth Headphone transmission
Yes
Bluetooth Headphone Volume Control
Yes
Multiroom / CI
HEOS Multiroom integrated
Yes
TV Sound grouping
Yes
Main room multichannel audio – Zone stereo downmix
Yes
Webbrowser Setup
Yes
IP Control / RS232 Control / Web Control / App Control
Yes / No / Yes / Yes
Others
Voice Control – Works with Amazon Alexa
Yes
Voice Control – Google Assistant / Apple Siri
Yes
Auto speaker setup by microphone
Audyssey MultEQ
Front Display
1 line FLD
Graphic User Interface – GUI
High Definition 1080p
GUI languages
9
Setup Assistant
Yes
Quick Select Plus / Quick Select
Yes / No
Firmware Update by Network / USB
Yes / Yes
Variable Crossover
Yes
Optimized Bass Redirection
Yes
HDMI Diagnostic Mode
Yes
ECO Mode
Yes
Auto Power off
Yes
Sleep Timer
Yes

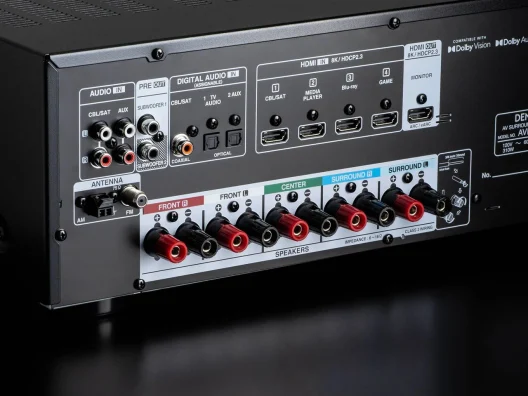

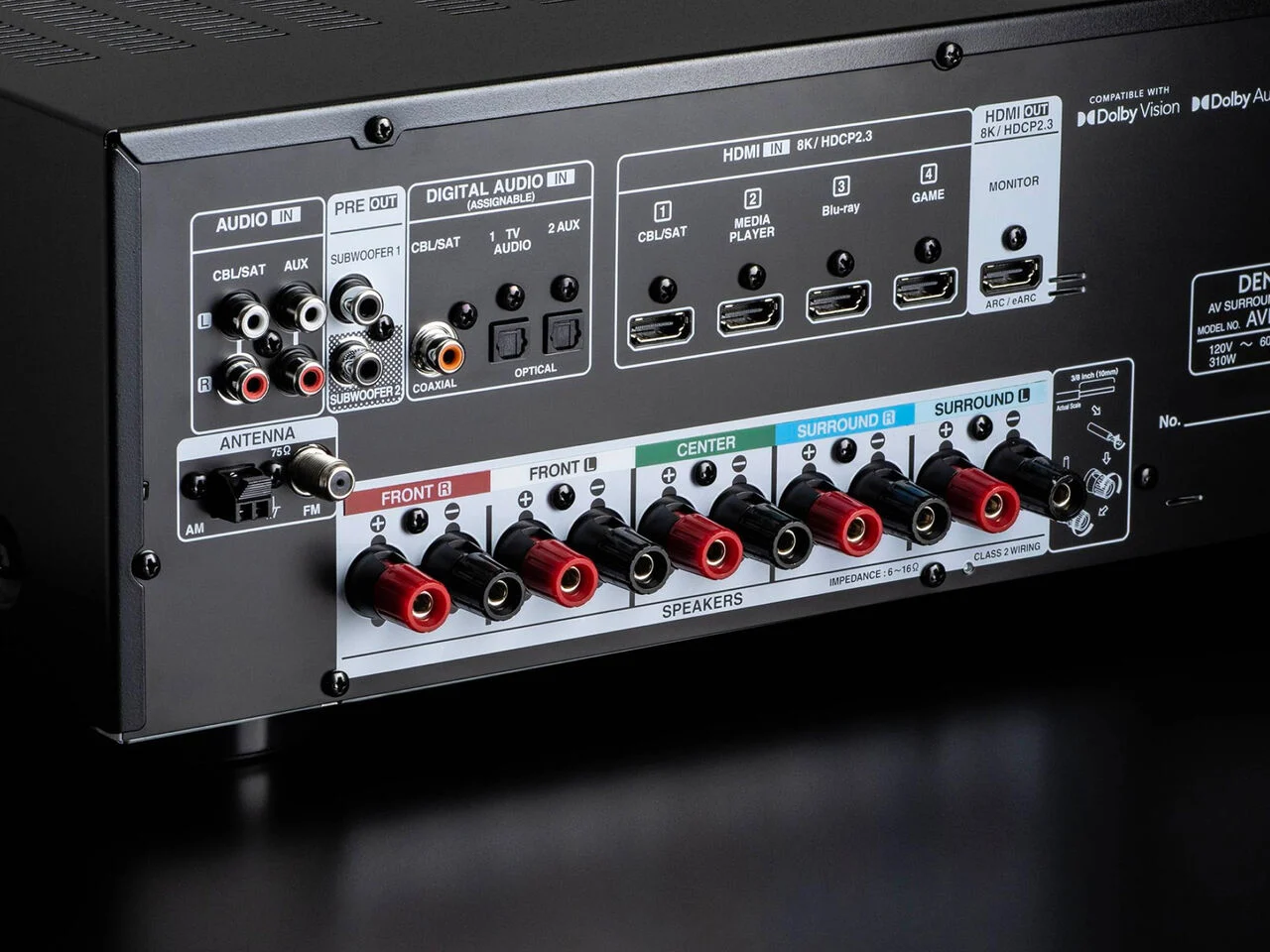

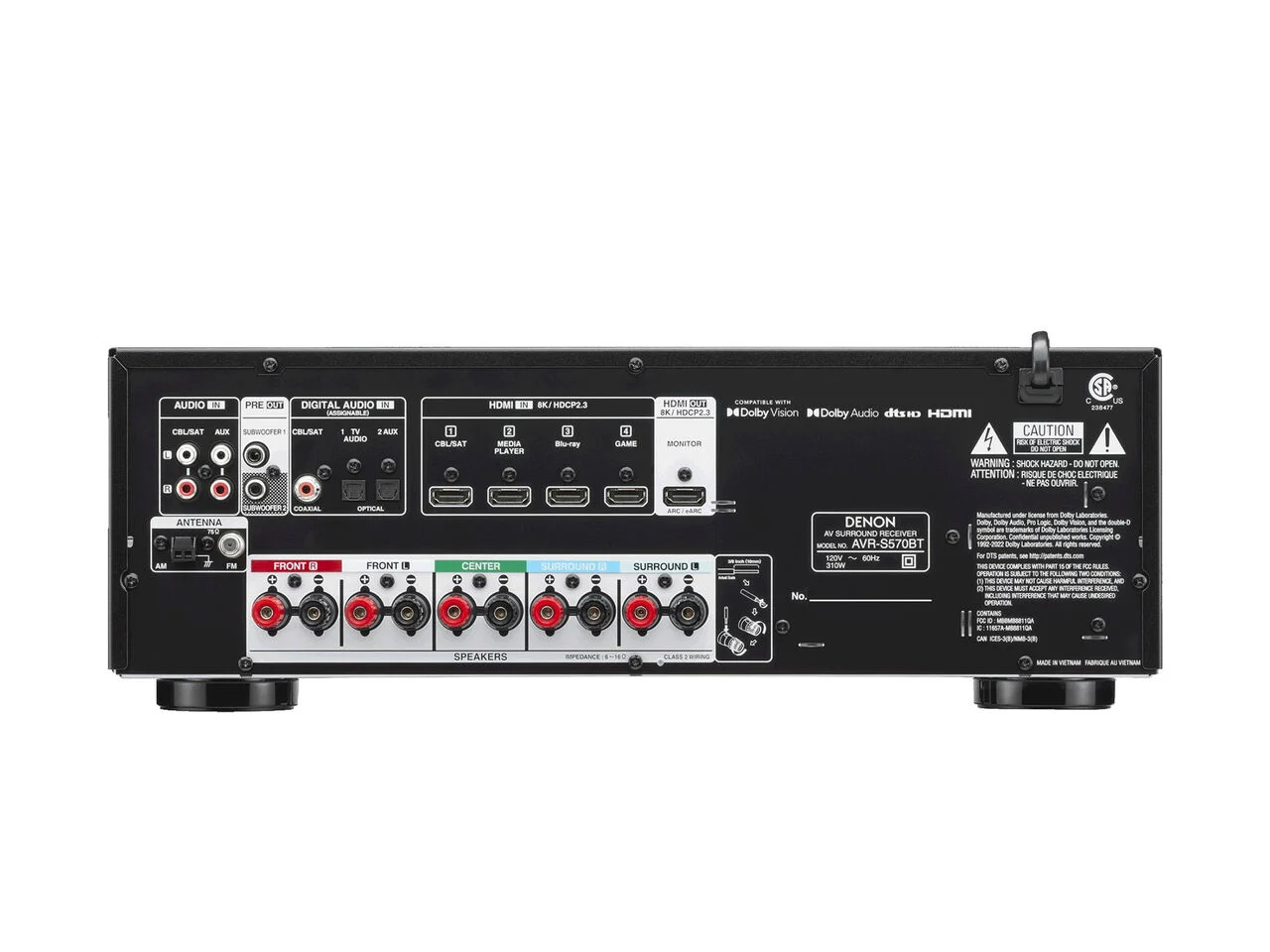

Inputs/Outputs
HDMI In/Out
6 / 1
Analog In/Out
2 / No
Phono (MM) In
Yes
Digital in: Optical/Coaxial
2 / No
Multichannel Pre-Out
Yes (0.2)
Subwoofer Out
2
Speaker Terminal: Gold-Plated Screw / Regular Screw
No / Yes
Number of Speaker Terminals
5
USB Audio Input Front
Yes
USB Power 5V/1.5A Rear
Yes
FM Tuner with RDS
Yes
Specifications
Number of Power Amps
5
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive)
75 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
100 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)
135W
General
Available colors: Black / Premium Silver
Yes / No
System Remote Control
RC-1258
Power Consumption in W
340
Power Consumption No-Sound (ECO on / off) in W
29 W / 39 W
Standby Consumption in W
0.1
CEC Standby Consumption in W
0.5
Network Standby Consumption in W
Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
434× 339 × 151
( 434 x 339 x 215)
Carton Maximum Dimensions (W x D x H) in mm
523 x 435 x 232
Weight in kg
7.8
Carton Weight (inc. product) in kg
9.7
Receivers – Channels
5.2
Receivers – Features
8K Ready, AirPlay, Alexa Ready, Audio Return Channel (ARC), Bluetooth, Dolby TrueHD, Dolby Vision, DTS HD Master, Ethernet Port, Google Assistant, HDMI Standby Pass-Through, HEOS, HDR, Internet Radio, Spotify, Wi-Fi
Receivers – Multi Room Zones
1
Receivers – Ports
Rear Panel USB, AM/FM Antenna, Audio In, Bluetooth / Wi-Fi Antenna, Digital Audio In, Ethernet Port, Phono Input, Power Amp Direct In, Pre Out, Remote Control In / Out, Subwoofer Input, USB, Video In, Video Out
Receivers – Watts Per Channel
126 to 160w
HDMI Inputs
6
