$5,250.00 Original price was: $5,250.00.$3,999.00Current price is: $3,999.00.
Free Shipping
-

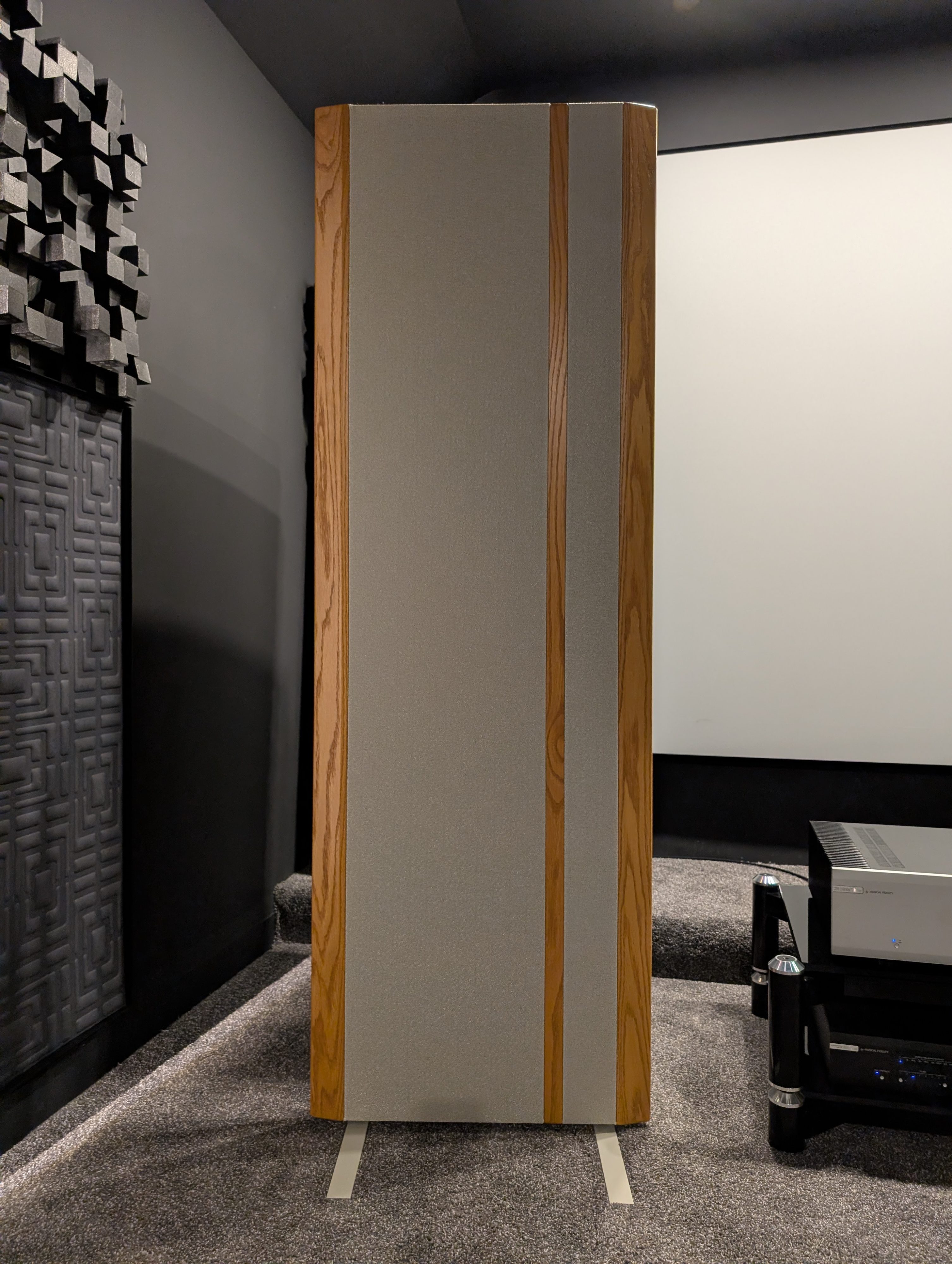

The Magnepan 3.6/R is a three-way, floorstanding planar dipole loudspeaker featuring a true ribbon tweeter, a planar-magnetic midrange driver, and a larger planar-magnetic bass driver. It has a tall, slender design with external crossover boxes and offers bi-wiring or bi-amplification options. The 3.6/R is known for its open, box-less sound, emotional honesty, and ability to reveal musical detail, but it requires good, powerful amplification to perform at its best.
Uses separate drivers for the treble, midrange, and bass.
A 55-inch long, free-standing ribbon that acts as both the driving element and the sound radiator.
Uses a 0.5-mil Mylar diaphragm with attached wire grids to reproduce the midrange and bass frequencies.
The crossover components for the bass and midrange are housed in separate, external boxes.

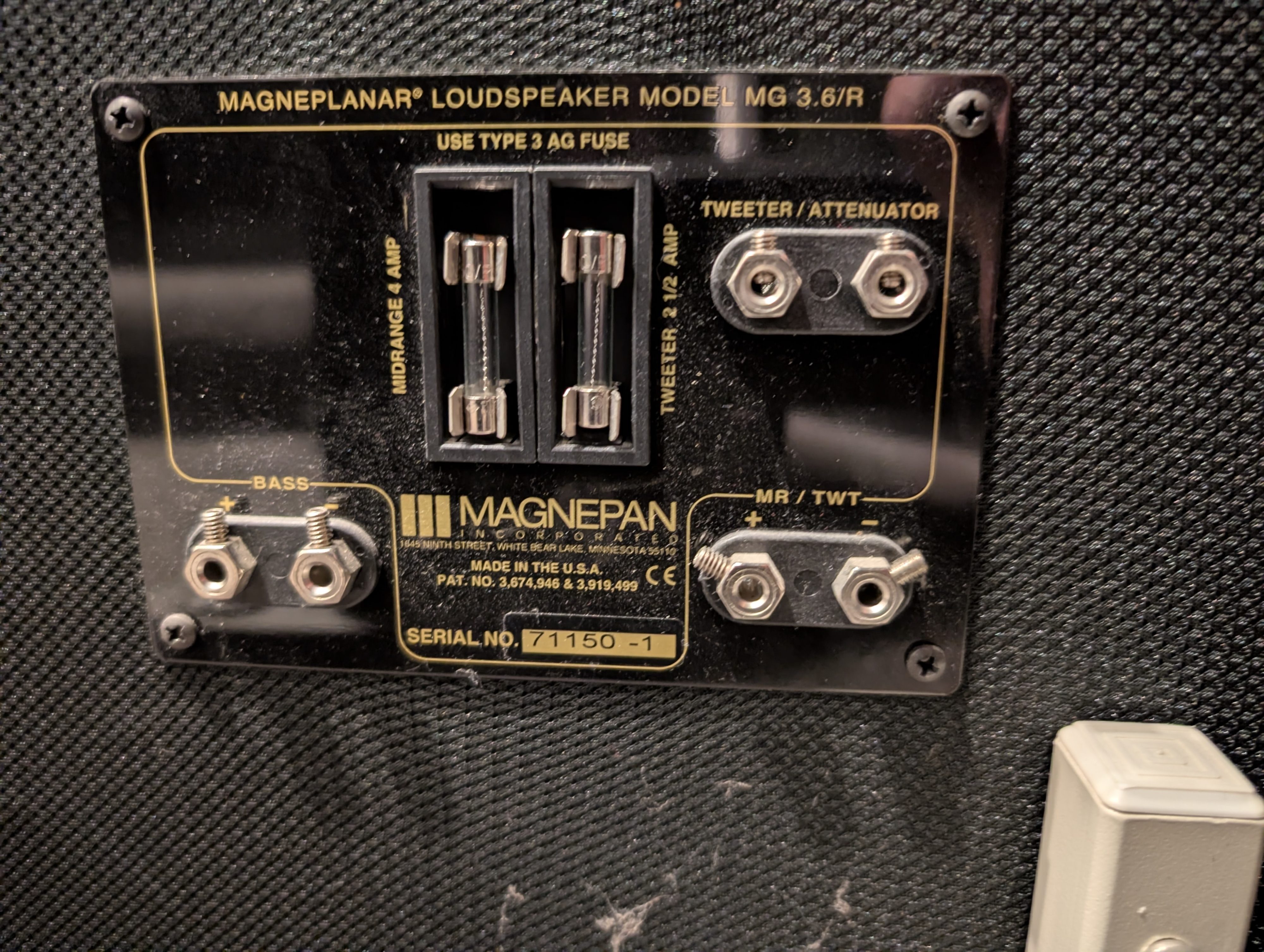

The speaker’s input plates are designed to allow for single-amplifier or dual-amplifier operation.
SYSTEM DESCRIPTION:
3-Way True Ribbon Tweeter, Planar-Magnetic Midrange and Bass with Bi-Amplification Option
BASS SECTION: 500 Sq. In. Planar-Magnetic
MIDRANGE SECTION: 199 Sq. In. Planar-Magnetic
TWEETER SECTION: 5/32 Inch Width, 55 Inches Long
FREQUENCY RESPONSE: **34Hz to 40kHz ±3dB
POLAR RESPONSE – RIBBON DRIVER: back to 20kHz
RECOMMENDED POWER: 180° Horizontal dispersion both front and 75 to 250 Watts RMS (8 Ohm rated).
SENSITIVITY: 86dB, 500Hz, 2.83Volts
IMPEDANCE: Bass- 4.7 Ohms Midrange/Ribbon Tweeter- 4.2 Ohms Ribbon Tweeter- 3.3 Ohms
CROSSOVER:Crossover between bass and midrange is 200Hz Crossover between midrange and tweeter is 1700Hz
DIMENSIONS: 24’W X 71″H X 1-5/8″D
WARRANTY: Limited. Non-transferrable – Ribbon Foil Element – 1 Year Balance of Speaker – 3 Years
SHIPPING WEIGHT: 145 Lbs. With Accessory Package
