Velodyne Digital Drive Plus – 10-inch Class D Powered Subwoofer

Precision. Power. Control.

The Velodyne Digital Drive 10 Plus brings the sophisticated technology of Velodyne’s Digital Drive Plus series into a compact, high-performance 10-inch powered subwoofer. Combining a high-output 10-inch driver, 1,250 watts of RMS amplification and advanced digital control, the Digital Drive 10 Plus delivers remarkably deep, accurate and controlled bass for both high-end two-channel systems and home theatre.

The Digital Drive Plus series uses digital diaphragm control at 16,000 samples per second, allowing the subwoofer to precisely monitor and control driver movement. Combined with high-precision automatic calibration and extensive adjustment capabilities, this technology helps produce clean, articulate bass while allowing the subwoofer to be carefully integrated into virtually any listening environment.

Powerful Amplification & Advanced Driver Technology

Despite its relatively compact enclosure, the Digital Drive 10 Plus incorporates a 1,250-watt RMS Class D amplifier capable of 3,000 watts of dynamic power. This provides substantial headroom for both demanding musical passages and the explosive low-frequency effects found in today’s movie soundtracks.

The 10-inch forward-firing driver features a six-layer, 65 mm voice coil and a fiberglass Rohacell laminate cone, combining rigidity, low mass and precise motor control for fast, powerful bass reproduction.

Precision Digital Room Calibration

The Digital Drive 10 Plus is designed to give you extensive control over how the subwoofer interacts with your room and main speakers. Its high-precision automatic calibration system helps optimize the subwoofer’s response, while software connectivity allows for additional fine-tuning.

Adjustable crossover, phase and polarity provide the flexibility needed to achieve seamless integration with a wide variety of loudspeakers and system configurations.

Deep Bass in a Compact Design

The Digital Drive 10 Plus offers an overall frequency response of 10.5–300 Hz, with a 18.7–120 Hz response within ±3 dB. This gives the subwoofer impressive low-frequency extension while maintaining the control and precision expected from a premium Velodyne design.

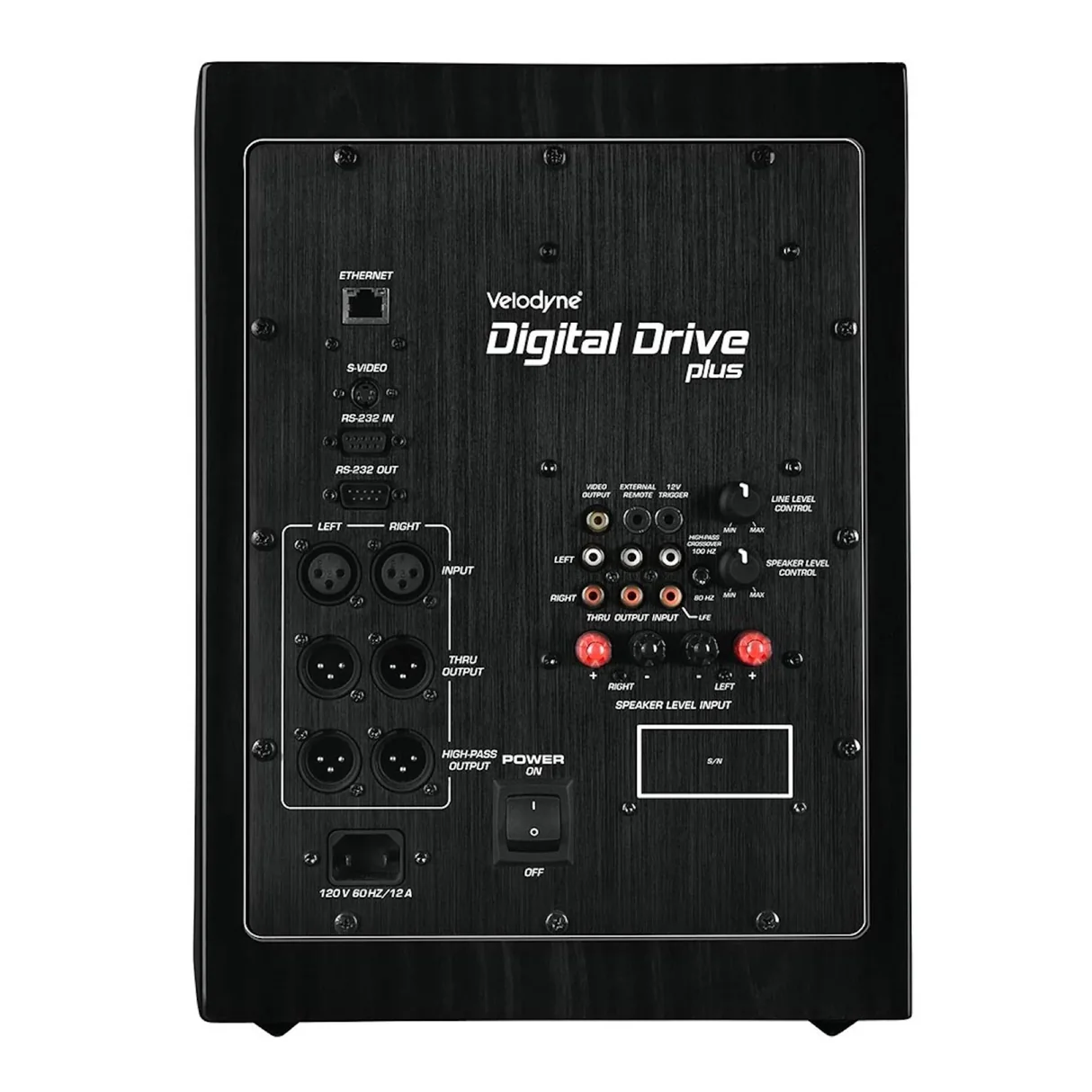

Extensive connectivity further enhances its versatility. The Digital Drive 10 Plus includes RCA and balanced XLR inputs, speaker-level inputs, line-level pass-through outputs and high-pass outputs, making it suitable for integration into both sophisticated two-channel systems and dedicated home theatres.
