SVS 3000 Micro R|Evolution Reference Subwoofer

$1,700.00

-

PRE-ORDER NOW for June 2026 Delivery!

A New Reference Standard for Micro Subwoofers.

The challenge of designing a truly compact subwoofer is balancing size with performance. Traditional micro designs sacrifice output, control, and musical accuracy in pursuit of a room-friendly enclosure, depriving users of a true subwoofer experience. The 3000 Micro R|Evolution is a revelation.

Drawing from the flagship SVS subwoofer platform, 3000 Micro R|Evolution represents a complete reimagining of compact subwoofer design by delivering infrasonic extension to 20Hz, stunning dynamic output, and musicality fit for the most demanding audiophiles. All from a handsomely compact 11-inch enclosure.

Owing to the advancements in driver, amplifier, and DSP technology, the 3000 Micro R|Evolution energizes a room with authority while preserving the nuance, texture, and tonal accuracy demanded by serious music listeners and home theater fans. When combined with advanced tuning and control features from the SVS Subwoofer Control app, it’s an unrivaled subwoofer experience.



Force Balanced Dual Opposing Active 9” Drivers

Delivers deep and authoritative low end with accuracy and detail.

,200-Watt Continuous, 4,000+ Watt Peak SVS R|Evolution Amplifier

MOSFET Output Stage

With discrete MOSFET output stage generates immense current while maintaining precise control and pristine signal integrity.

295 MHz Analog Devices DSP

Monitors and controls power delivery, thermal management, driver excursion, and more to ensure uncompromised system performance.

Rear Panel Intelligent Control Interface (ICI)

Groundbreaking SVS Subwoofer Control Smartphone App is the easiest way ever to control your subwoofer’s volume and manage custom presets for one-touch tuning for movies, music, and more. Connected via Bluetooth, the app works with Apple iOS, Android, and Amazon devices to unleash the full force of the 3000 Micro R|Evolution subwoofer by controlling all DSP functions, including: volume, 3 band parametric EQ, low pass filter, phase, polarity, room gain, and system settings.

SVS Subwoofer Control Smartphone App

Simplifies usability while improving sound quality in any room.



Acoustically Optimized Compact 11” Cabinet

Blends seamlessly into any room and energizes a space with astonishingly rich and detailed bass.

Features & Specifications

• Frequency Response / Acoustic Data:

  • 20Hz to 230Hz +/-3dB
  • Roll-off slope specifically optimized to take maximum advantage of available room gain

  • 2-meter ground plane away from reflective structures (quasi-anechoic)
  • 20% to 60% lower acoustic THD+N in critical low frequency bandwidth compared to previous generation.

  Subwoofer Specs:

  • Dimensions (including grilles): 10.9” (278mm) H X 11.8” (298.8mm) W X 10.8” (273.6mm) D
  • Weight: 22.5lbs (10.2kg)
  • Packaged Dimensions: 13.7” (349mm) H X 14.9” (379mm) W X 14.6” (370mm) D
  • Packaged Weight: 28.3lbs (12.8kg)

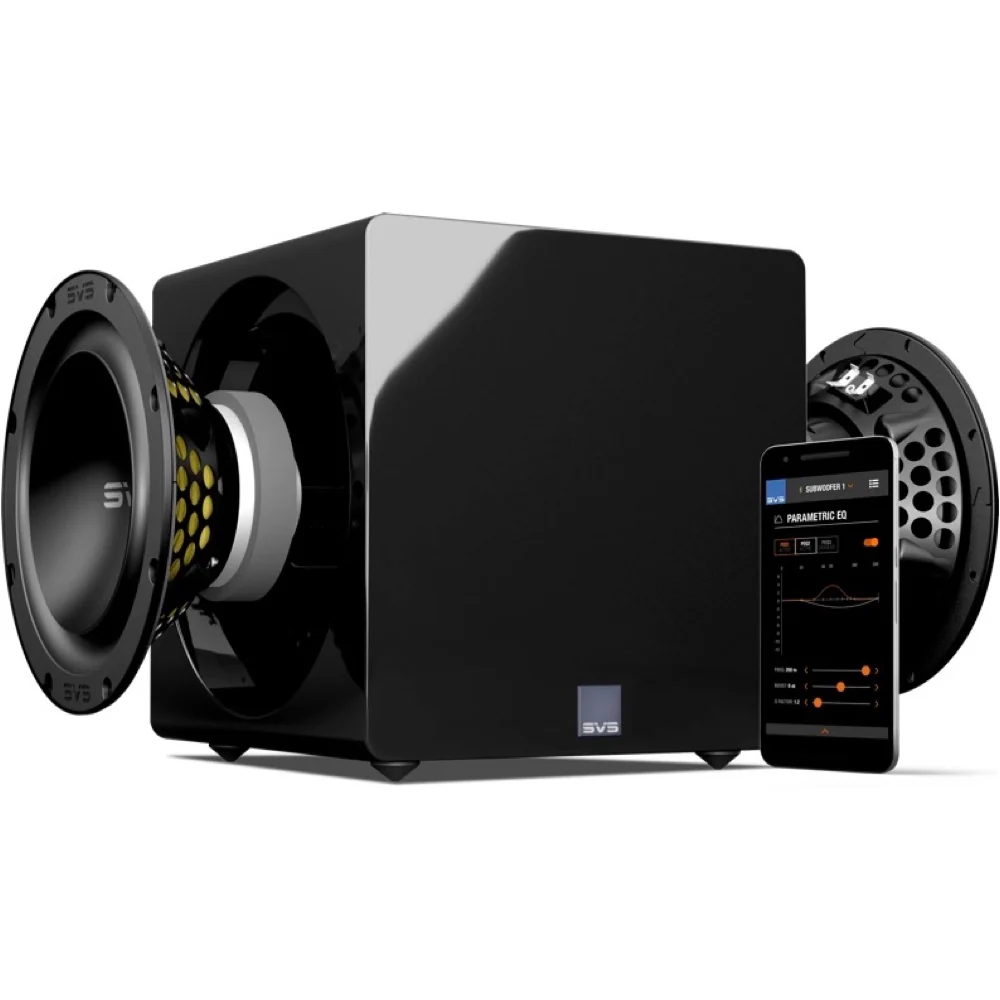

  • Dual opposing side-firing 9-inch high-excursion active drivers acoustically and electrically in parallel.

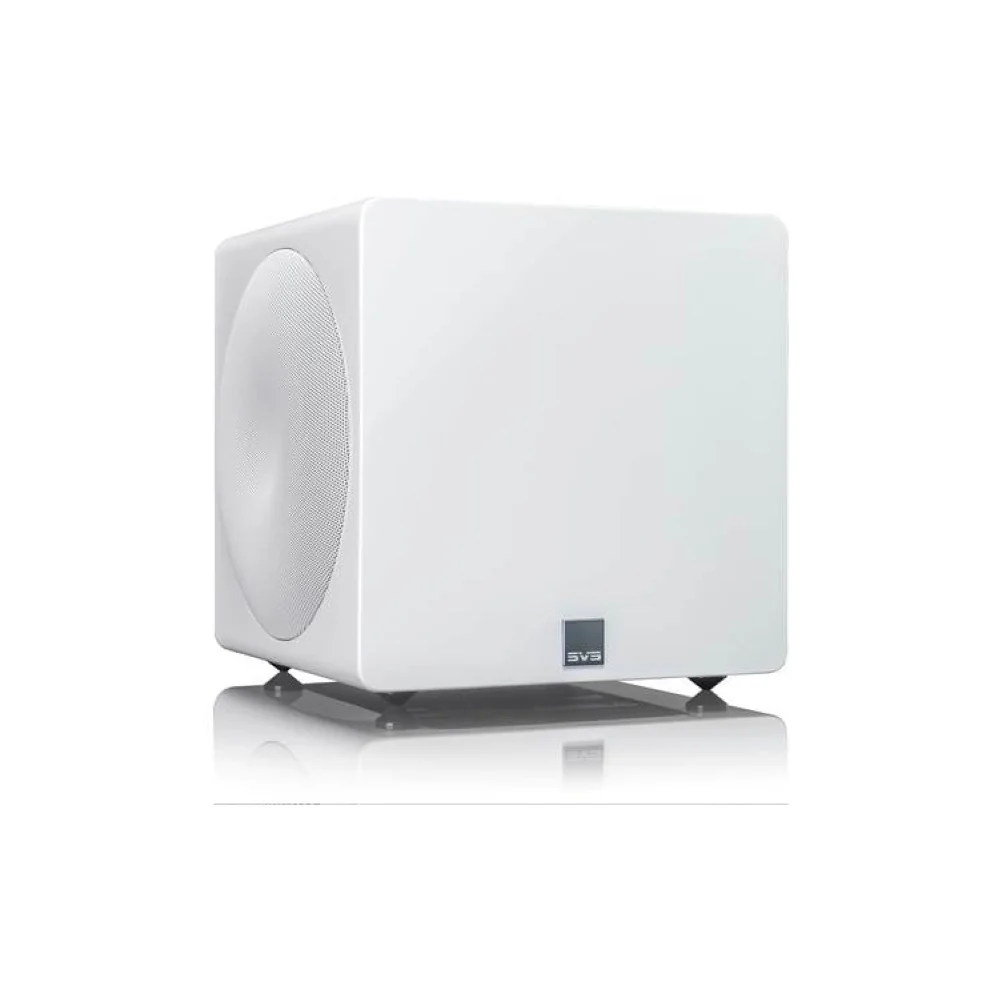

  • Piano Gloss Black and Piano Gloss White finish options
  • Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
  • Protective non-resonant steel metal mesh grilles shield driver to prevent damage while ensuring longevity.
  • Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels.
  • Screw-in Iso-elastomer feet reduce noise artifacts and improve stability

  Driver Specs:

  • Dual opposing 9-inch long-throw drivers electrically and mechanically in parallel for massive output and a sonically insert cabinet, and ultra-low system vibration even at maximum output levels.
  • Precisely tuned overhung motor configuration for exacting excursion and control.
  • 27.3mm Xmax, 32.6mm Xmech precision aligned excursion
  • Custom 9” baskets with FEA optimized powder-coated steel frames for maximum rigidity, thermal conductivity, and mechanical damping
  • 1100 aluminum single piece cone and coupler provide excellent stiffness and a lightweight moving mass with optimized thermal conduction.
  • High-current 4-layer copper voice coil winding minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion.
  • High-temperature 3003-H18 aluminum former/bobbin

  • Powerful oversized Y30 ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transient speed.
  • Precision machining motor and narrow tolerance suspension parts maintain control and linearity at full excursion
  • Extreme oversized low carbon 08AL steel T-yoke and top plate provide superior cooling and maximum magnetic circuit for maximum performance and efficiency.
  • 6063 Aluminum shorting ring reduces gap induction and distortion, enhances thermal conductivity, and improves magnetic linearity.
  • Proprietary injection-molded NBR surround built for extreme-excursion maintains ideal pistonic motion for pinpoint accuracy and control.
  • Dual balanced 24-strand silver plated Litz wire high temperature leads woven through the 5” composite linear spider provides a pristine electrical connection from the amplifier to the voice coil.

  Amplifier Specs:

  • Massively powerful 1,200-watt continuous Class D design with over 4,000 watts of Peak Power.
  • 50% Higher RMS power output than previous generation
  • High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering, with over 5x the processing power of our previous subwoofers, the most advanced subwoofer processor available for perfect audio reproduction.
  • DSP runs real time complex power management algorithms, monitoring the real-time power, driver excursion, and current thousands of times per second. This allows the DSP to drive precisely regulated clean voltage, greatest headroom, and maximum current to push the driver’s voice coil with optimized efficiency.
  • Advanced audiophile grade 56bit digital audio processing and premium DACs (Digital-to-Analog Converters) with more than 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.
  • Discrete Class D amplifiers create effortless and endless power from four massive 60A 200V MOSFETs in full bridge configuration able to output over 100 Vrms across both drivers. This results in lower EMI with the highest efficiency while providing effortless power, producing SPLs and low-frequency output with pristine clarity well beyond reference listening levels.
  • All new digitally controlled Switch Mode Power Supply (SMPS) with a high-efficiency low EMI resonant LLC topology ensuring a consistent regulated 160V rail voltage for the amplifier. Digital monitoring of the AC input mains voltage and current allows the power supply to understand the AC line conditions and tune the power supply for optimal performance in different environments.

  • < 0.05% THD+N at rated power (70% to 90% lower than previous generation), ensuring exacting signal integrity at all drive levels.
  • Customer EQ and DSP limiter settings specifically for the 3000 Micro R|Evolution allows the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass.
  • Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs)
  • Balanced XLR 18kohm input impedance (compatible with consumer and professional audio up to 4Vrms / +14dBu inputs)

  SVS App Specs:

  • Compatible with Apple iOS, Google Android, and Amazon Fire platforms, the industry-leading SVS Subwoofer Control Smartphone app allows convenient and intuitive management of all subwoofer controls.
  • The Analog Devices DSP supports a comprehensive menu of functions, including volume, fully adjustable low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more.
  • Includes three convenient memory presets for fast and easy global system adjustments to match listener preferences.

  • Subwoofer Auto Room Equalization (Coming Soon) will use your mobile device built-in microphone, or an accessory microphone (Coming Soon) to measure the acoustic performance of your subwoofer in your room and automatically calculate precision equalization filters to optimize the subwoofer and room combined performance at your listening position.
  • Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
  • Easy-to-follow tutorial provides clear guidance for all functions.

  Included Accessories:

  • Dual protective non-resonant steel mesh grilles
  • Isolating elastomer feet

  • Heavy-duty, high-current 6-foot power cord
  • Quick Start Guide
