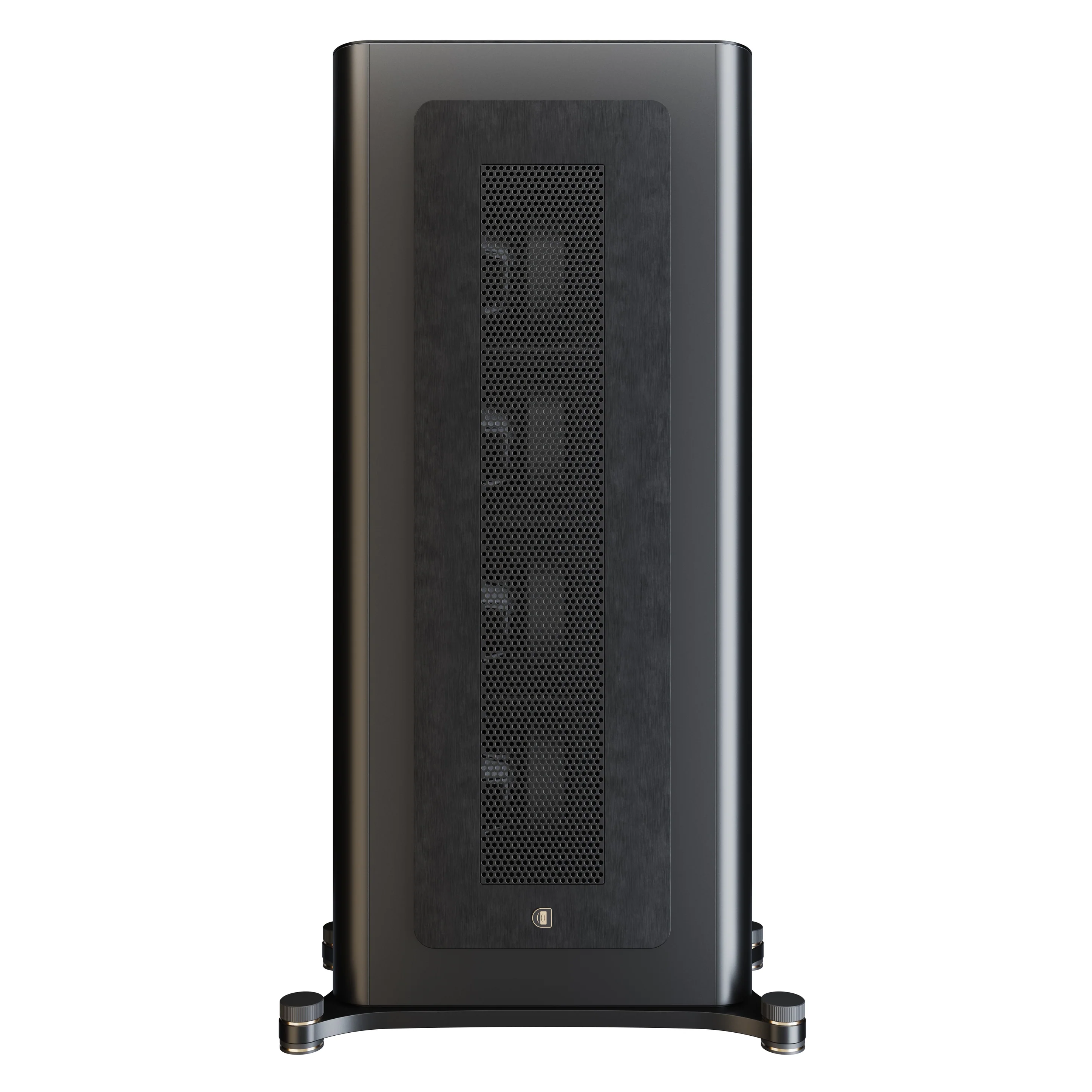

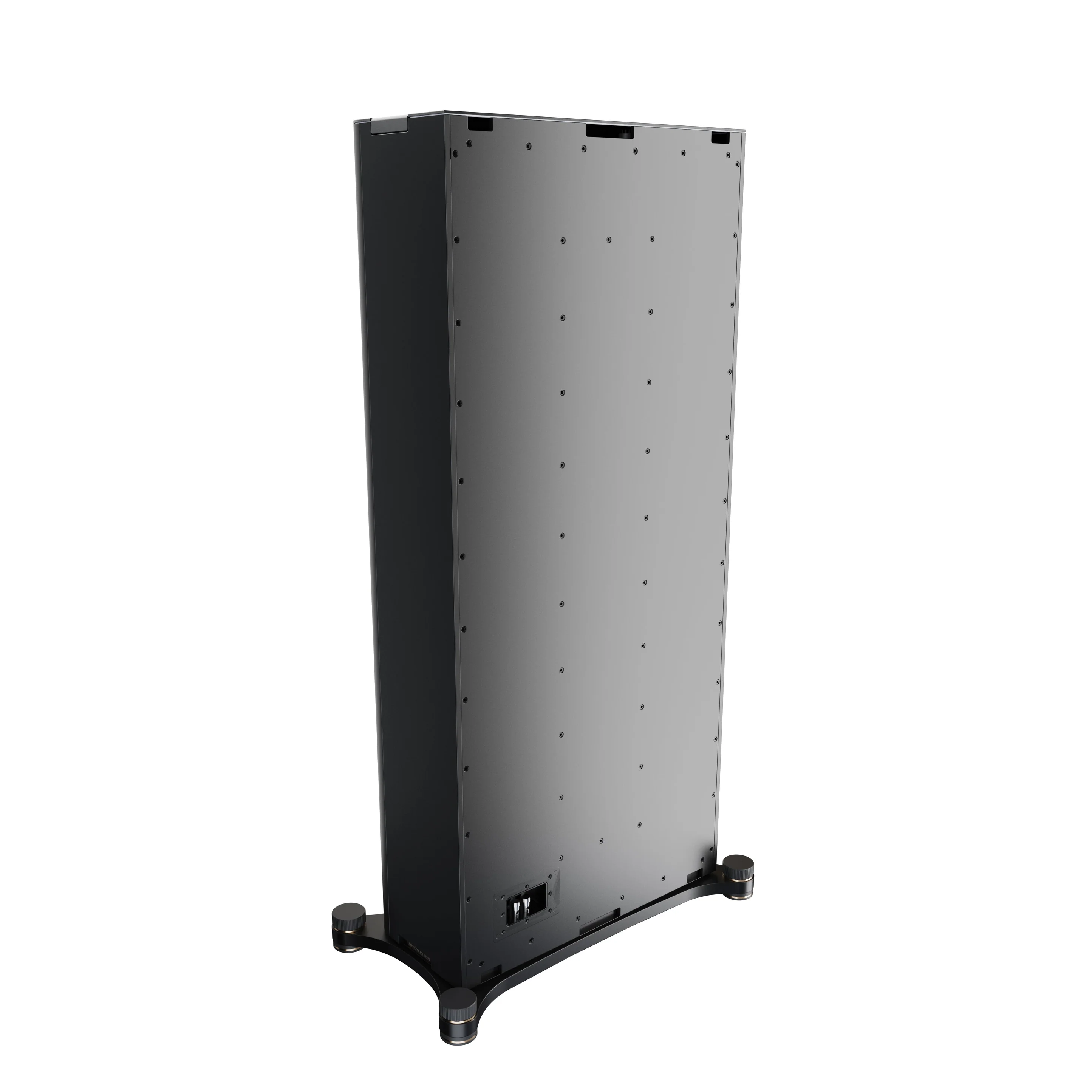

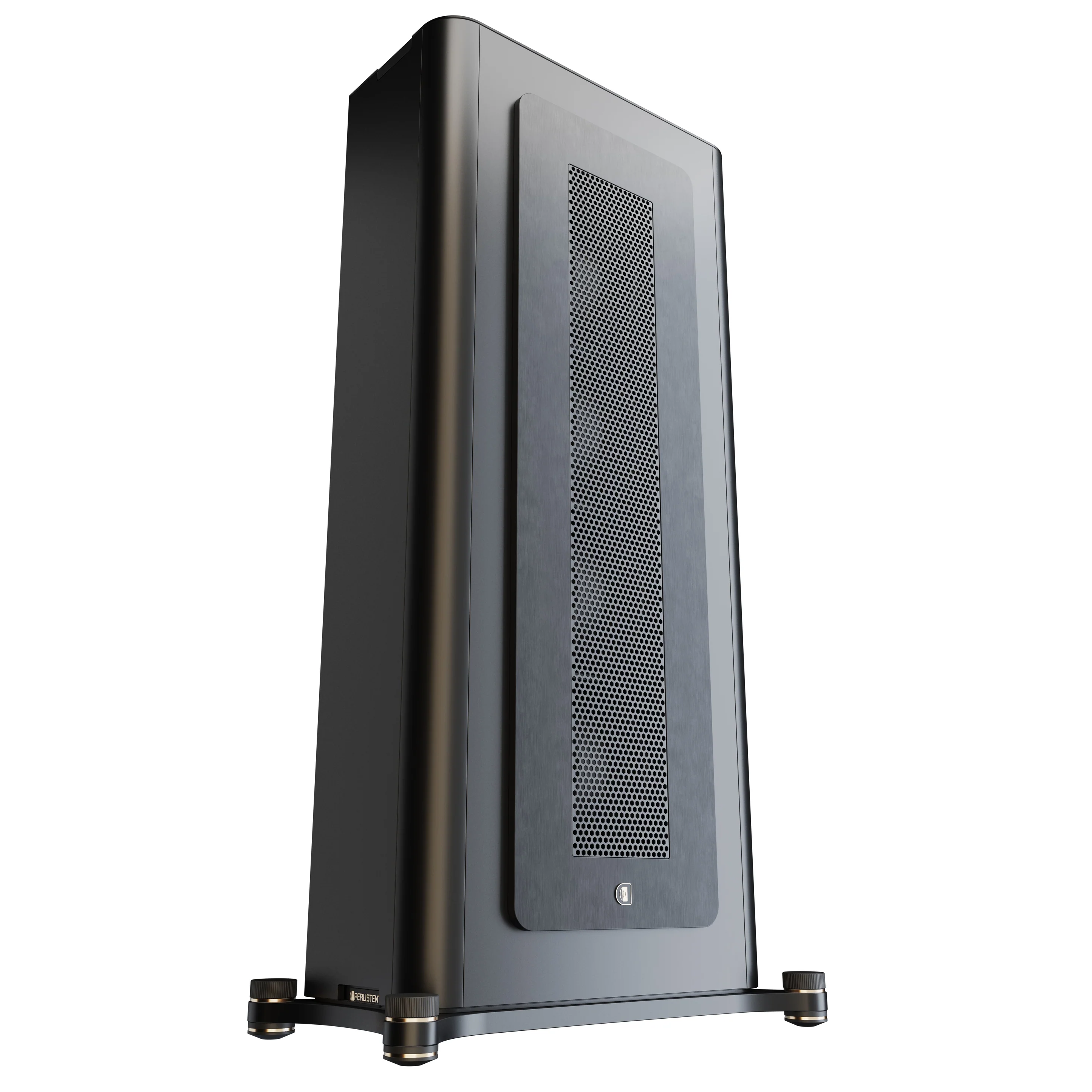

Perlisten Audio D8is In-Wall Subwoofer with Amplifier
$29,995.00
-
Free Shipping
-
Dynamic, Accurate, Fast, Slim, Beautiful, and Massive Bass with Minimal Distortion and Zero Vibrations
This flagship subwoofer is perfect for music and movie lovers and can be used freestanding, on-wall, or in-wall featuring 8 x 8″ woofers w/ a DSP3000W Amp

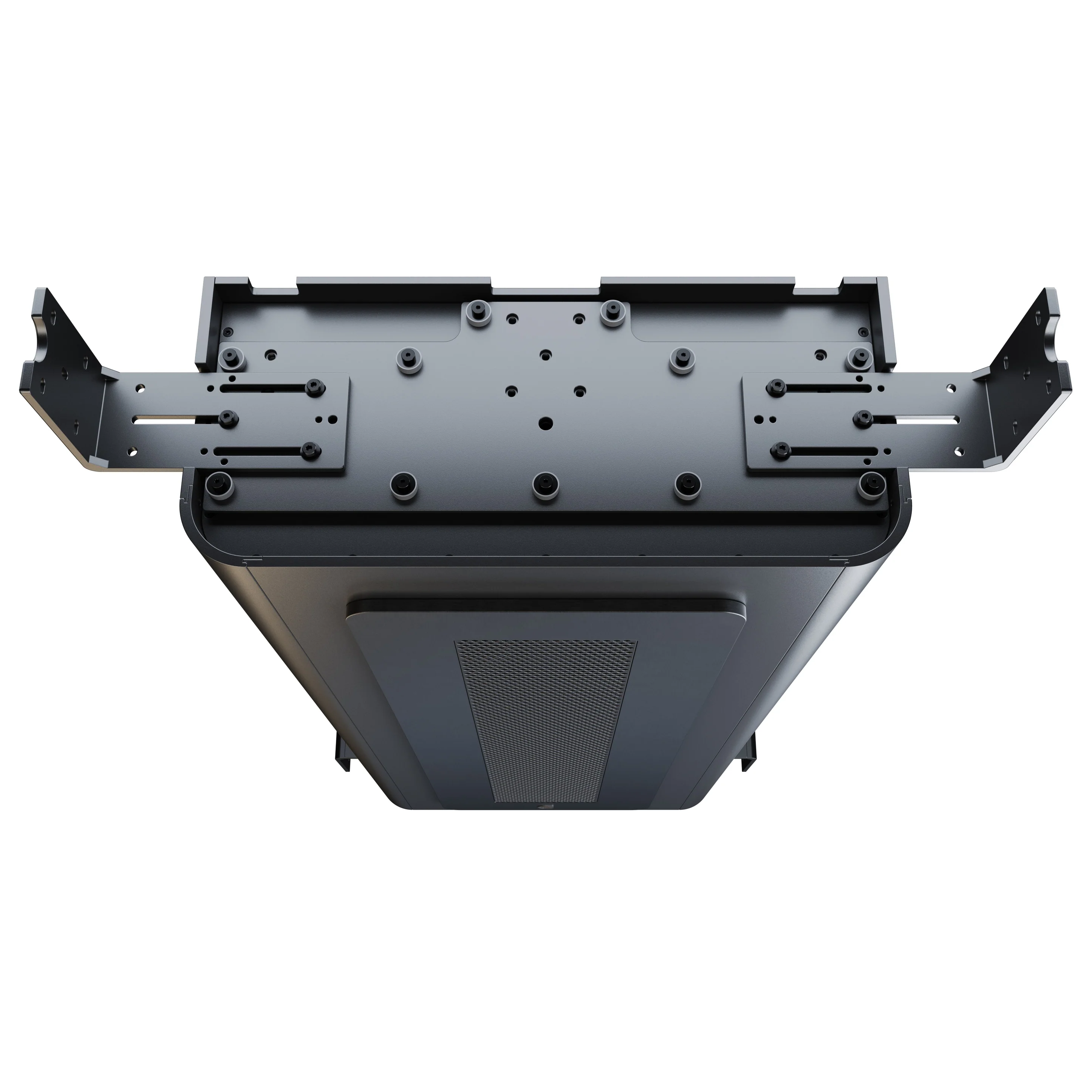

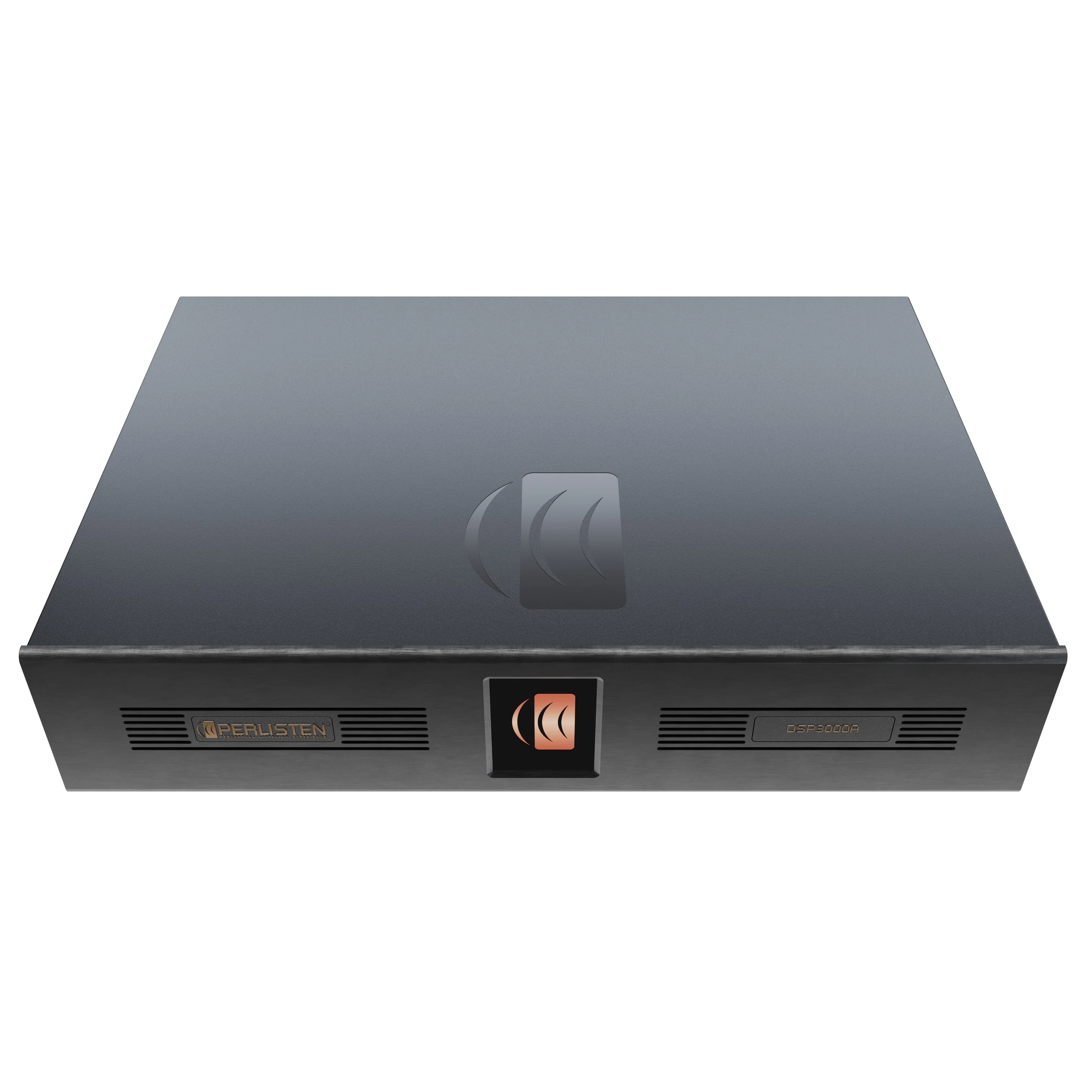

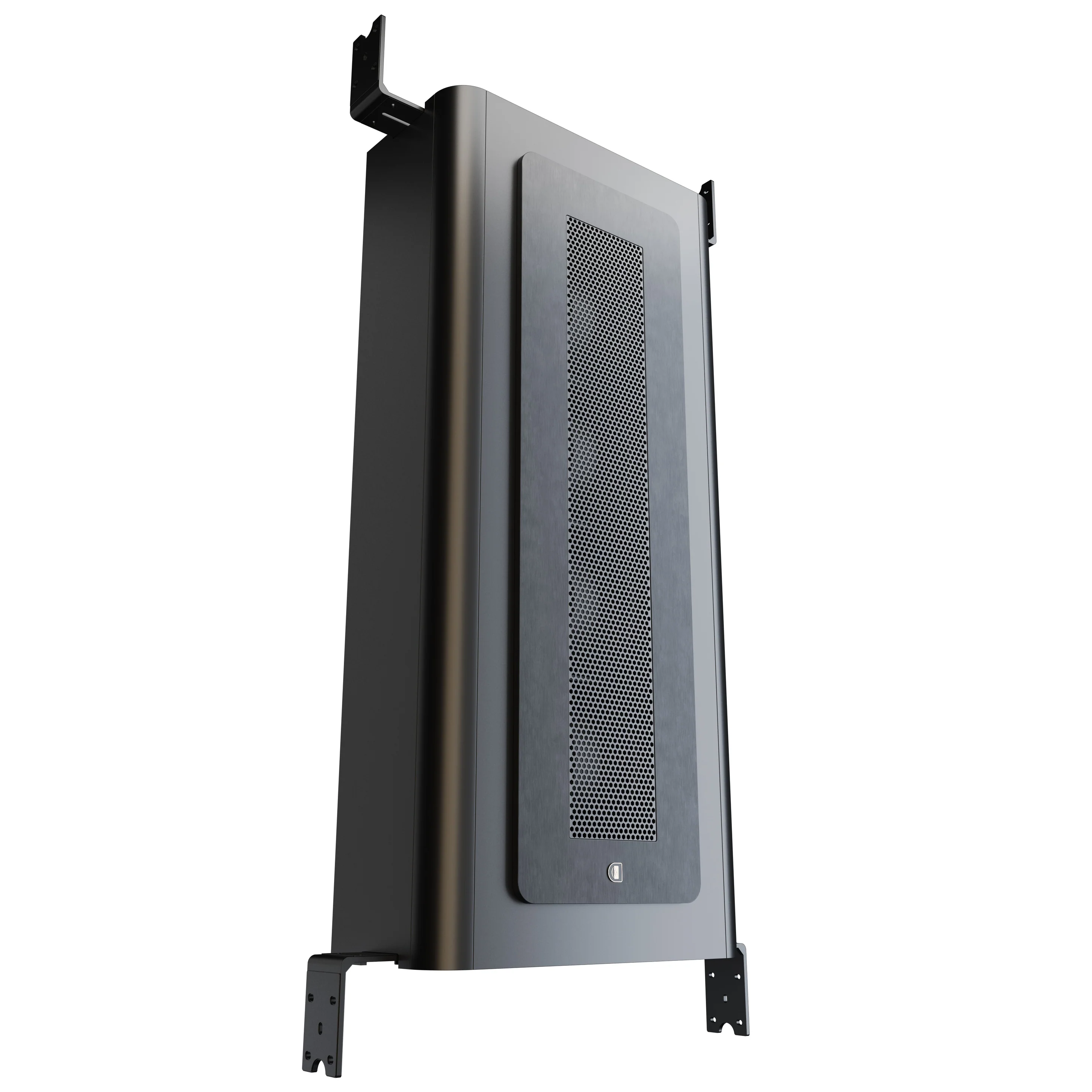

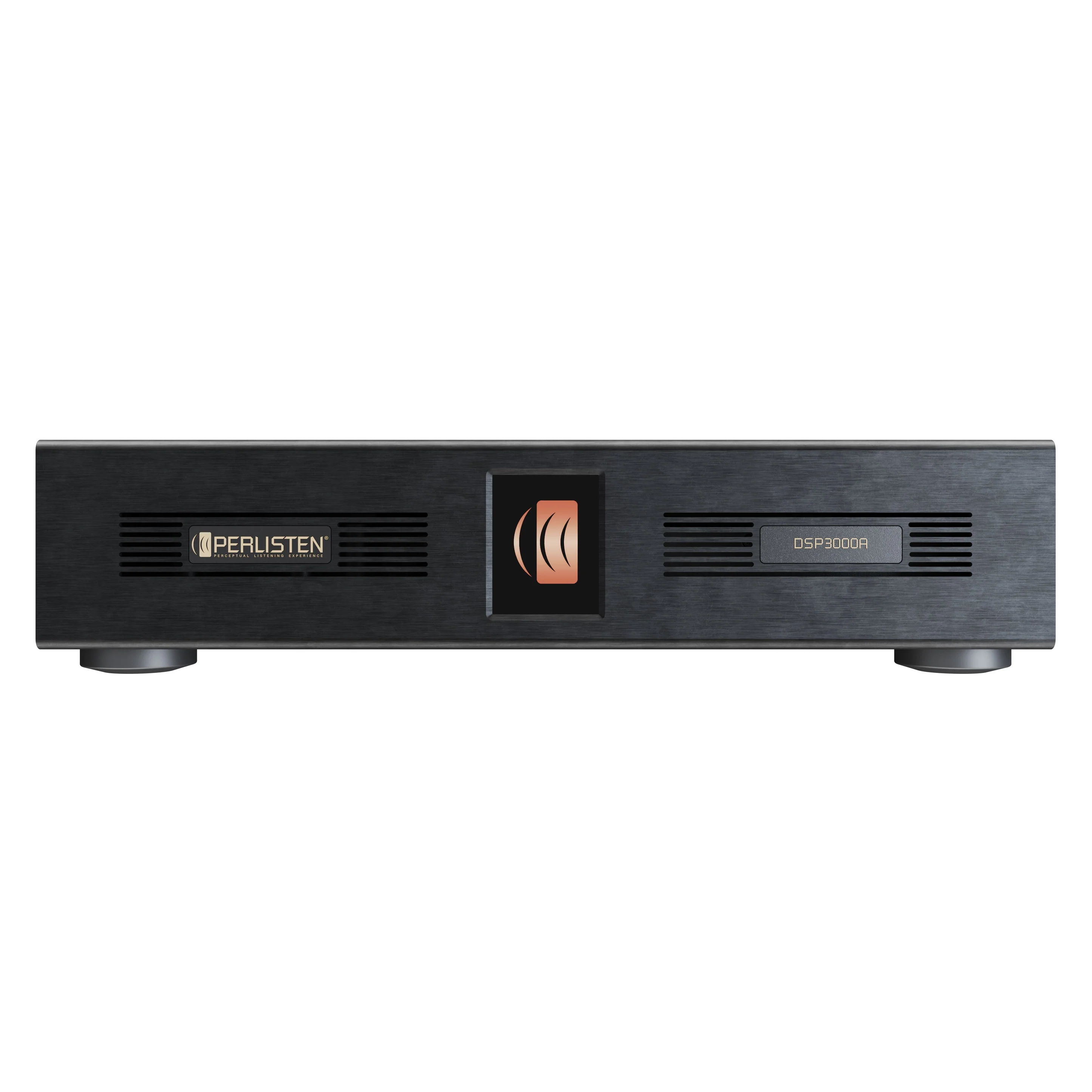

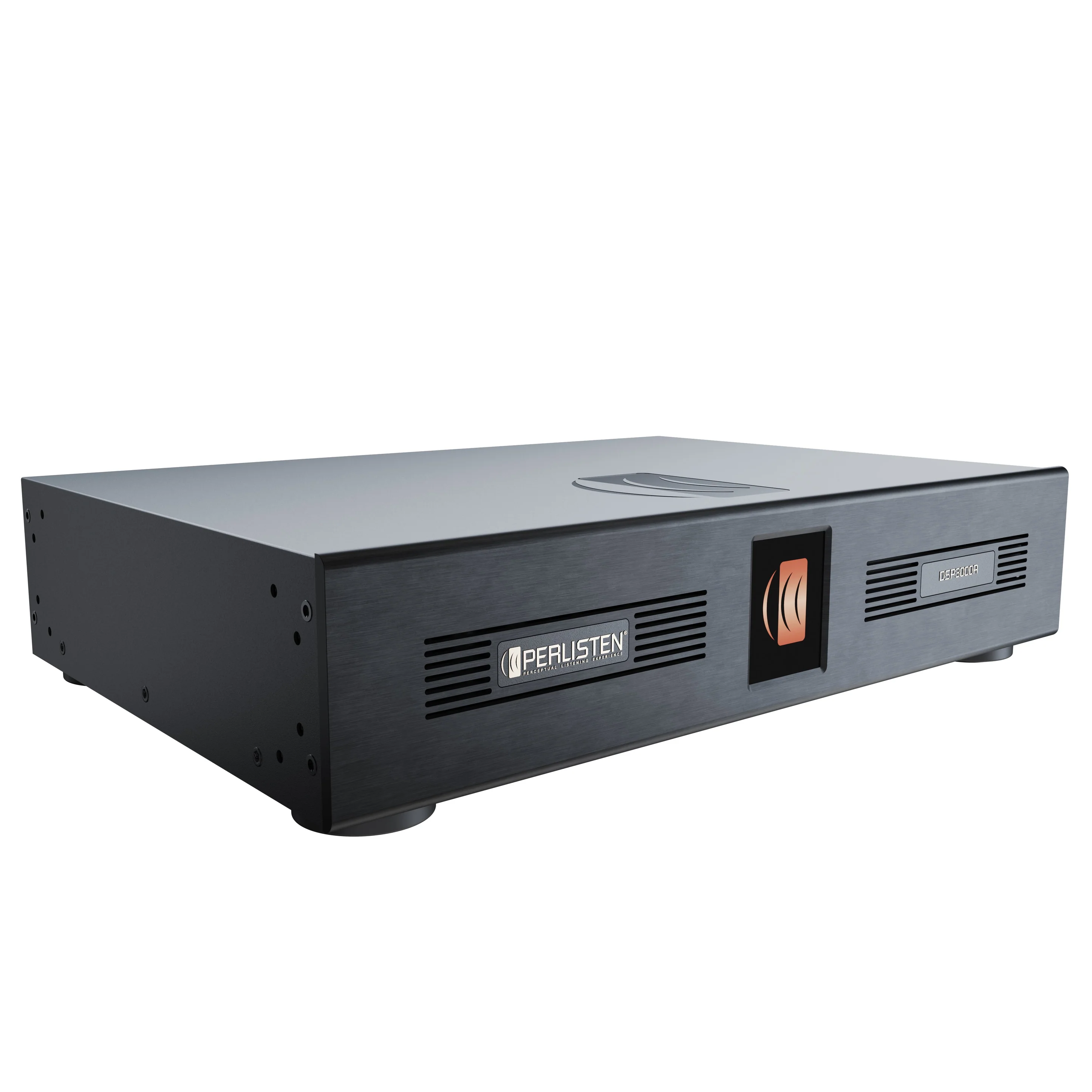

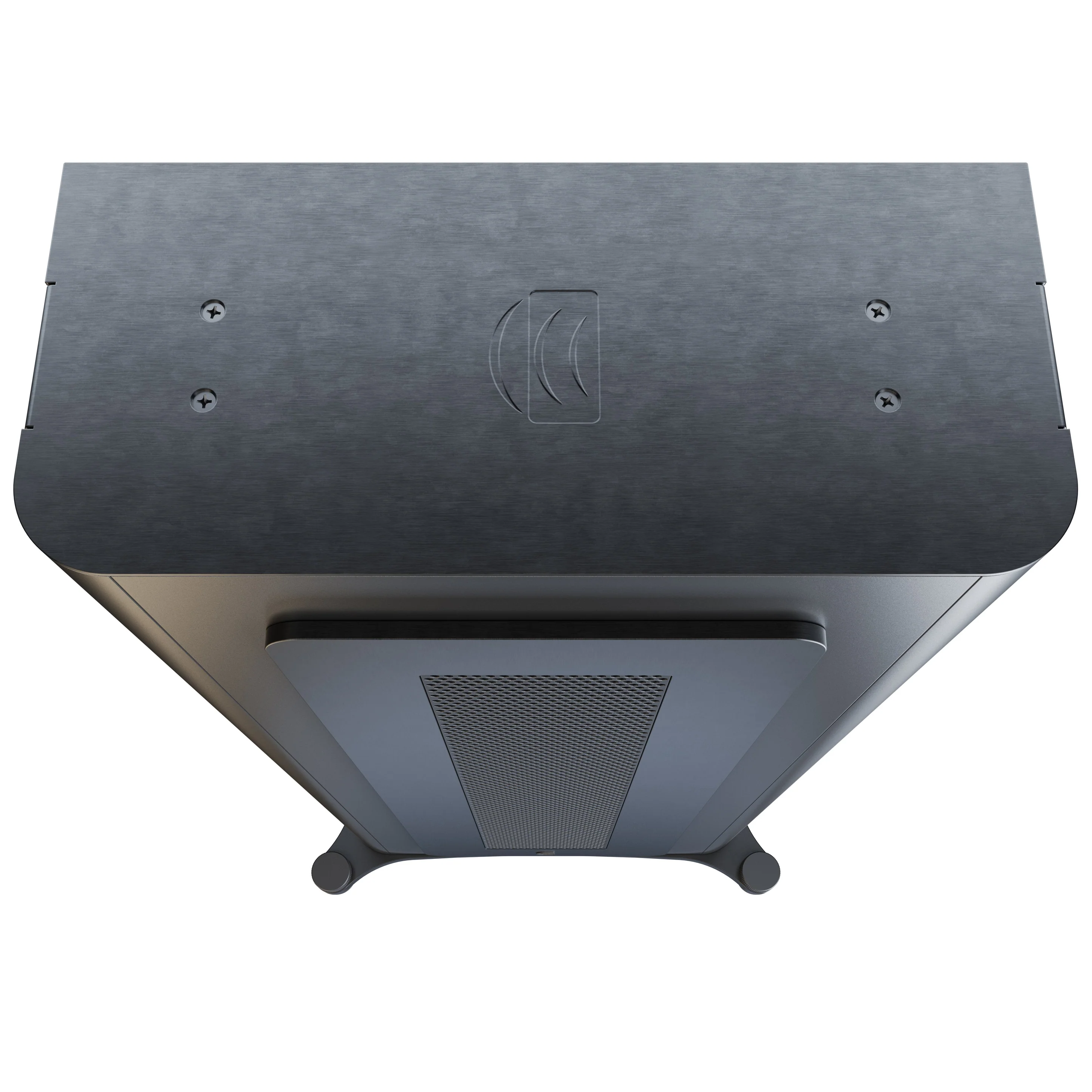

The D8is is in its own class. The D8is calls upon all of Perlisten’s work over the past decade to create yet another level of fidelity. Push-Pull, of course, for the ultimate in linearity, dynamics and power all at the lowest levels of distortion. Utilizing a unique array of (8)215mm or 8.5” drivers. The new woofer array accomplishes mechanical force cancelling. With each side of the woofer array acoustically ‘in phase’ and mechanically ‘out of phase’. The force of each driver’s motion cancels the force of its opposing complement. This all results in a dramatic reduction of cabinet vibrations at all frequencies. We have incorporated a proprietary, versatile vibration isolation mounting solution – In-Room, In-Wall or On-Wall, we have thought about all applications as well as creating a superb solution for Waveforming. Driven by our DSP3000A 3kW amplifier and custom DSP, now with the addition of a digital input. Housed in a hybrid aluminum/steel chassis and front facing 2.8” color touchscreen, the amp can be conveniently located on display in-room or hidden away in a separate room with other rack mounted components.


Features & Specifications
| Alignment | Acoustic suspension |
| Amplifer | 3000W rms |
| Display Interface | 2.8″ LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | (8)215mm (8.5″), Carbon fiber diaprhragm +/-18.0mm linear excursion |
| Reference sensitivity | 97.0 dB /150mV/ 1.0m |
| Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ |
20-290Hz (-6dB) / 16-330Hz (-10dB) 16-290Hz (-6dB) / 14-330Hz (-10dB) 25-290Hz (-6dB) / 19-330Hz (-10dB) |

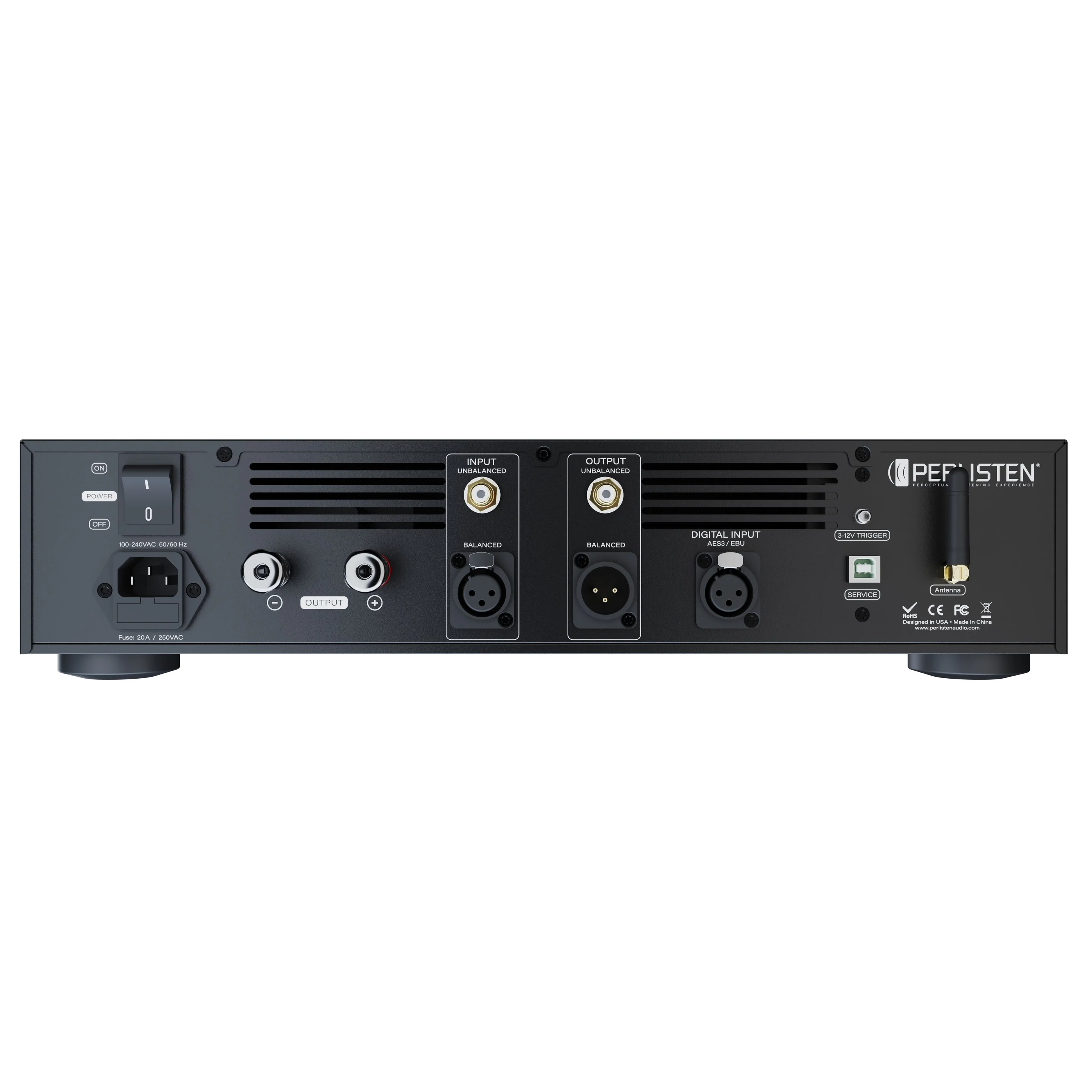

| Inputs | (1) Balanced XLR (1) Unbalanced RCA |
| Outputs | (1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered (1) Digital AES/2 |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Phase | variable 0-270o |
| Polarity | normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR, RCA |
| Subwoofer Dimensions overall (HxWxD) *see architectural drawing |
1137.6 x 508.0 x 238.6mm (without brackets) 44.8 x 20.0 x 9.4″ |
| Amplifier Dimensions overall (HxWxD) *see architectural drawing |
89.0 x 429.2 x 322.4mm 3.5 x 16.9 x 12.7″ |
| Weight NW subwoofer NW amplfier GW packaged |
103.8 kg (228.4 lbs) 6.1 kg (13.4 lbs) 191.1 kg (422.2 lbs) |
| Available Finishes | Black anodized aluminum matte black |
