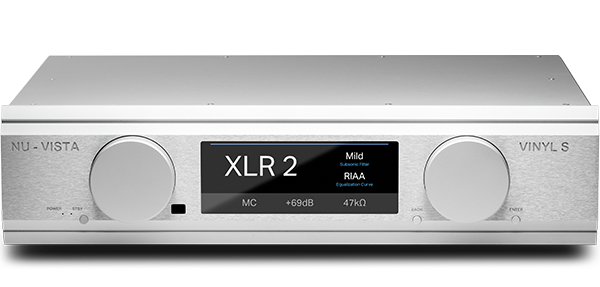

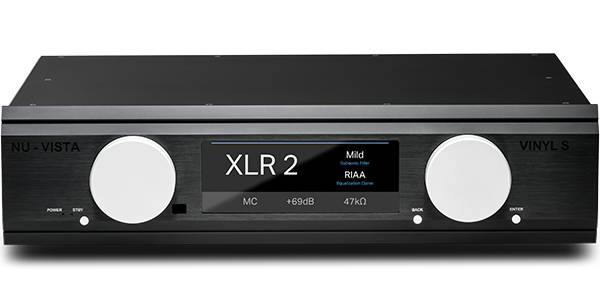

Musical Fidelity Nu-Vista Vinyl S Phono Stage
$8,199.00
-
Free Shipping
-
The Nu-Vista Vinyl S brings the same state-of-the-art nuvistor tube phono preamplifier technology—originally developed for the acclaimed Nu-Vista Vinyl 2—to a new, highly competitive price point.
Through meticulous engineering and intelligent design refinements, Musical Fidelity’s team has succeeded in preserving the essence of the Nu-Vista experience while making it more attainable to discerning audiophiles.
The integrated amplifiers Nu-Vista 800.2 and 600.2 got highest accolades by audiophile consumers, dealers and reviewers world-wide. To achieve the best of the best result in high-end integrated ampflication our base idea was not to include a phono stage nor a DAC in BOTH reference products. – Just pure analog.
In November 2023, the the Nu-Vista Vinyl 2 reference phono stage was introduced, perfect for Nu-Vista PRE / PAS / PAM. But too bulky and expensive to match to the Nu-Vista 800.2 and 600.2 integrated amps.
Now, almost exactly 2 years later, designed as the perfect companion for the Nu-Vista 800.2 and 600.2, Musical Fidelity annouces the new Nu-Vista Vinyl S, which is more affordable than the original reference, but very close performance-wise. Most of the costs could be saved by the use of more economical cabinets without reducing the quality of components too much.
The result is a wonderfully smooth and open sounding phono stage with all features a true audiophile vinyl lover dreams of.
Features & Specifications
MM
- Gain at XLR outputs: 40dB, 43dB, 46dB, 49dB
- Frequency response: +0.25dB, -0.25dB
- Input sensitivity: 5mV IN for 500mV OUT (at 40dB, 1kHz)
- Intut impedance: 47kohm
- Input capacitance: 50-400pF selectable
- THD at 1kHz: <0.005%
- Overload Margin: 32dB
- Signal to noise ratio: >101dB „A“-wt. at 40dB
MC
- Gain at XLR outputs: 60dB, 63dB, 66dB, 69dB
- Frequency response: +0.3dB, -0.3dB
- Input sensitivity: 500uV IN for 500mV OUT (at 60dB, 1kHz)
- Intut impedance: 5 ohm to 47kohm selectable
- Input capacitance: 400pF fixed
- THD at 1kHz: <0.008%
- Overload Margin: 32dB
- Signal to noise ratio: >82dB „A“-wt. at 60dB
Features
- EQ curves: RIAA, DECCA, COLUMBIA
- Subsonic filters: off, mild (IEC), standard (at 20Hz with 18dB/octave)

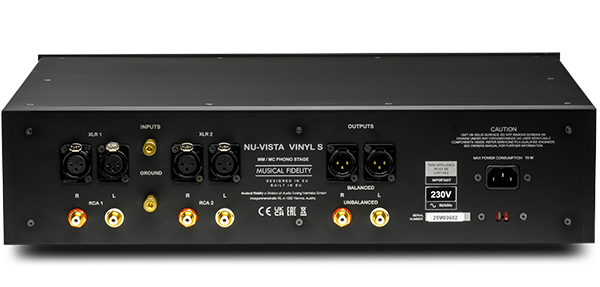

In & Outputs
- Inputs: 2x RCA, 2x XLR
- 1x RCA output: unbalanced, left and right 500mV nom, 10V max
- 1x XLR output: balanced, left and right 1V nom, 20V max
Power requirement
- Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
- Consumption: 40 Watts maximum, <0.5 W in standby (orange LED ON)
General Information
- Dimensions (WxHxD): 483 x 131 x 404 mm
- Weight: 14 kg net / 18,6 kg in shipping box
