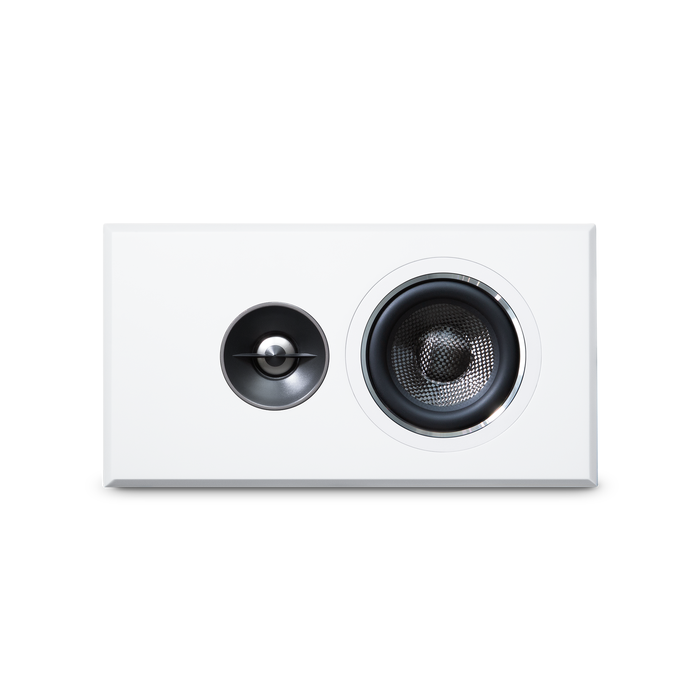

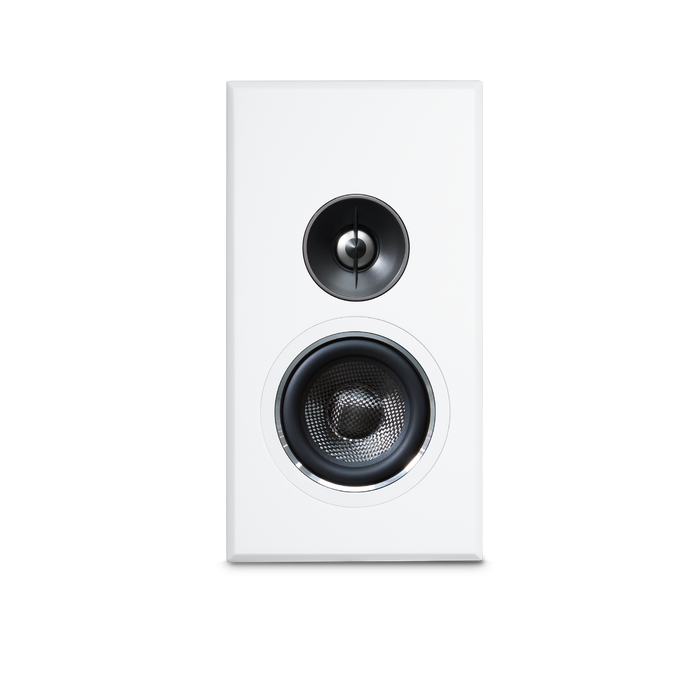

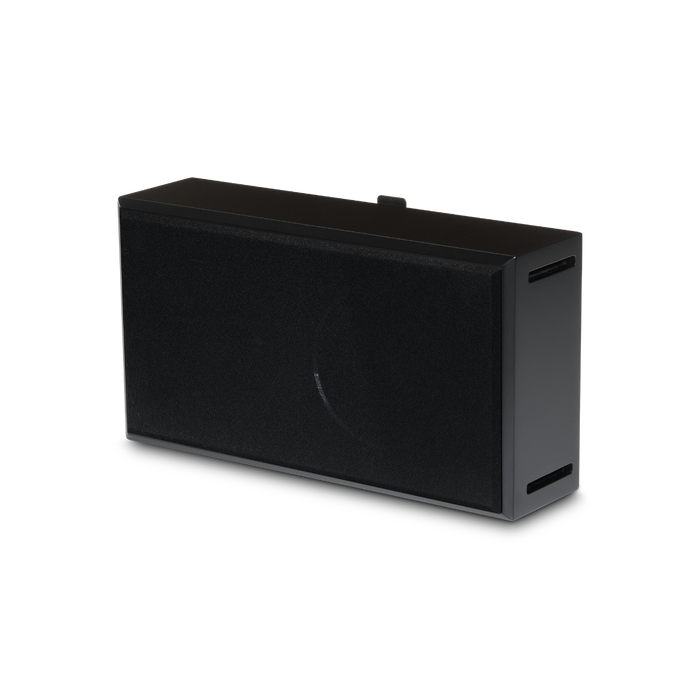

PSB PWM Sat On-Wall Speaker
-
Free Shipping
-
The Most Compact Model in the PWM Series
The PWM Sat On-Wall Speaker expands the acclaimed PWM range with a smaller form factor and more flexible price point. Using drivers based on PSB’s flagship Synchrony platform, it delivers the same sonic signature as its larger siblings—detailed, dynamic, and tonally accurate. Designed for easy installation and seamless integration across PSB families, the PWM Sat proves that compact doesn’t mean compromise
Fits where you need it

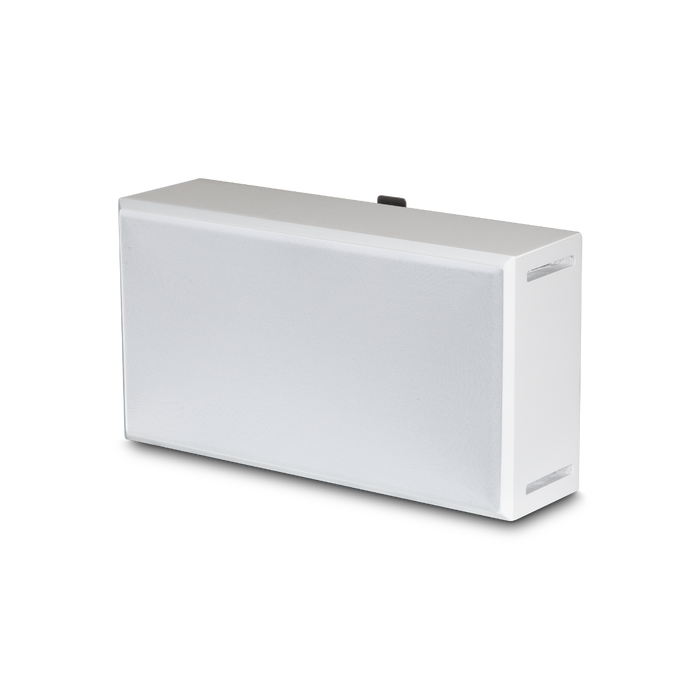

The PWM Sat’s two-piece locking bracket supports horizontal, vertical, or ceiling installation. It can even be inverted for near-ceiling placement. That means it works as a front left or right, surround, height channel, or as a compact 2-channel solution with a subwoofer
Consistent sound across PSB
The PWM Sat is voiced to match PSB’s on-wall, in-room, and architectural speakers, making it simple to mix and match models across a project. No matter the combination, you get a consistent sonic signature for a cohesive listening experience
Synchrony-based driver platform

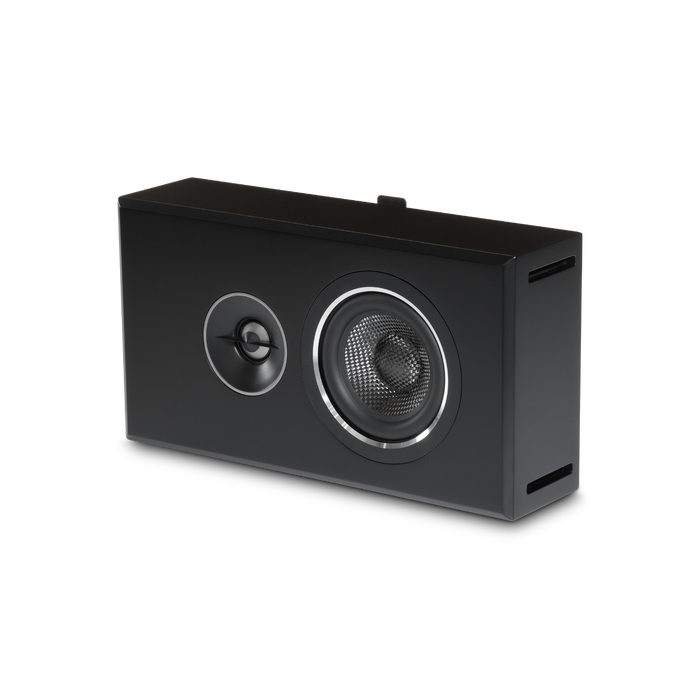

Built on PSB’s proven Synchrony driver technology, the PWM Sat pairs a 1″ titanium dome tweeter with a 4″ woven carbon fiber woofer. The result is lifelike clarity, natural detail, and dynamic performance—maintaining low-volume intelligibility and room-filling impact at higher levels
Blends in beautifully

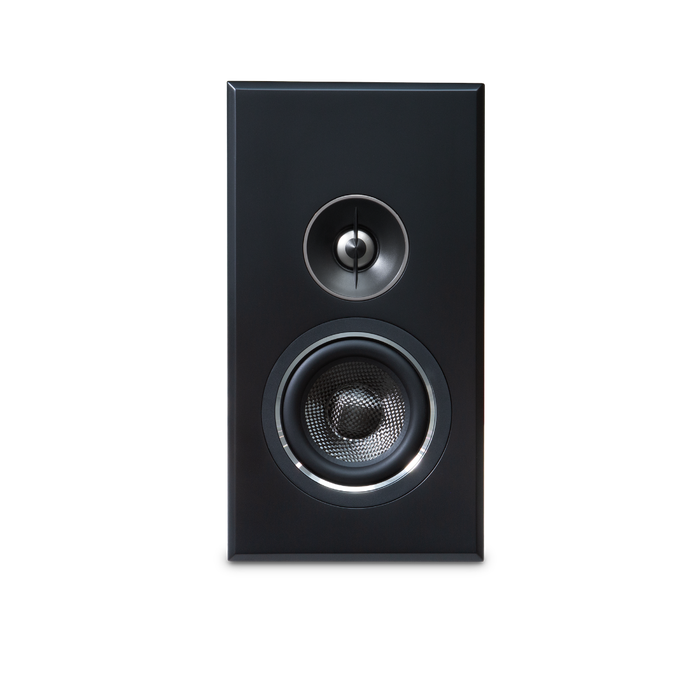

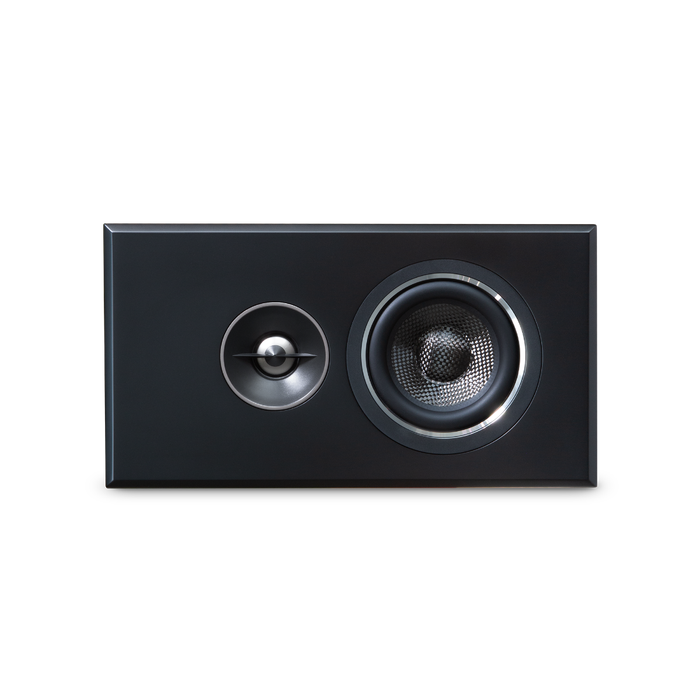

The smallest member of the PWM Series, the PWM Sat is as discreet as it is capable. With its slim profile and premium finishes in Satin Black or Satin White, it blends into residential or commercial spaces without drawing attention
Customer Reviews
Features & Specifications
Frequency Response
| On Axis @ 0° ±3dB | 90 – 23,000Hz |
| LF Cutoff -10dB | 62Hz |
Sensitivity
| Anechoic Chamber | 83dB |
| Listening Room | 85dB |
Impedance
| Nominal | 8 Ohms |
| Minimum | 6 Ohms |
Acoustic Design
| Tweeter (Nominal) | 1″ (25mm)
Titanium Dome with Ferrofluid |
| Woofer (Nominal) | 1 x 4″ (100mm)
Carbon Fibre Cone Rubber Surround Cast Basket |
| Design Type | Bass Reflex |
Construction
| Cabinet | MDF |
| Grille Face | Acoustic Transparent Cloth |
| Frame | MDF |
Size (W x H x D)
| Net W | 12” (305mm) |
| Net H | 6.5” (165mm) |
| Net D | 3.38” (85mm) |
| Depth With Grill | 3.5” (90mm) |
Weight
| Net | 20 lbs (9.1 kg) |
| Shipping | 28 lbs (12.7 kg) |
Finish
| Available Finishes | Satin Black, Satin White |

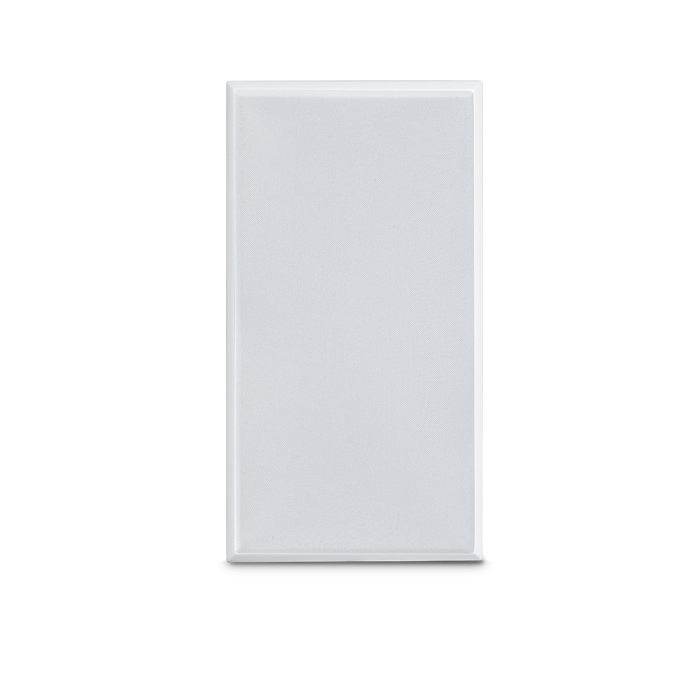

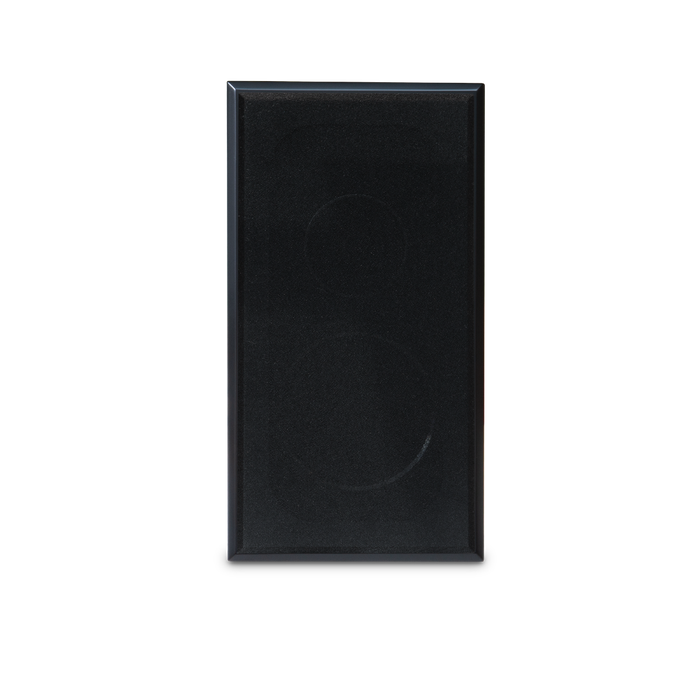

| Grille Type | Magnetic, Cloth Grille |
