PMC ci140 On-Wall Loudspeaker (Each)
$9,200.00
Inventory Status
Product is on the way. Contact us for an updated ETA
-
Free Shipping
-
The PMC ci140 is the flagship of the Custom Install series, representing the absolute pinnacle of architectural audio engineering in 2026. Designed to deliver the scale, authority, and transparency of a full-sized studio main monitor, the ci140 is the ultimate solution for the most demanding home cinemas and professional mixing environments. Whether used as the primary LCR (Left, Center, Right) array in a high-end residential theater or as the reference standard in a Dolby Atmos® mastering suite, the ci140 provides an immersive experience that is both physically powerful and emotionally evocative.
Unrivaled Bass Depth with ATL™ and Laminair
At the heart of the ci140’s massive sound is PMC’s Advanced Transmission Line (ATL™) technology. While most architectural speakers struggle to move enough air to create a true cinematic impact, the ci140 features a sophisticated internal labyrinth measuring an incredible 2.3 meters (7.5ft) in length. This allows the speaker to achieve a frequency response that flatlines down to 32Hz, delivering the kind of deep, chest-thumping bass usually reserved for massive freestanding cabinets.
To maintain absolute precision at high volume levels, the ci140 incorporates Laminair™ aerodynamic venting. By smoothing the airflow at the exit of the transmission line, this technology eliminates turbulence and air noise. The result is a low-frequency response that is remarkably fast, clean, and high-definition, allowing for the reproduction of complex low-end textures without the “smearing” common in traditional ported designs.
The 3-Way Driver Configuration
The ci140 utilizes a high-output 3-way design to ensure perfect tonal balance and immense dynamic headroom:
- Quad Bass Drivers: The system features four 5.25-inch (133mm) Natural Fibre LT™ long-throw drivers. This configuration provides the surface area of a much larger single woofer but with the speed and control of smaller cones, allowing for explosive transients and effortless scale.
- The Midrange: A 2-inch (50mm) PMC55 soft-dome midrange driver handles the critical vocal frequencies. This driver is renowned for its transparency, ensuring that dialogue and vocals are projected with lifelike clarity.
- The Tweeter: A 1-inch (27mm) soft-dome tweeter with a custom waveguide ensures wide, consistent dispersion, creating a massive sweet spot that covers every seat in the room.
Versatile Installation and Aesthetic Integration

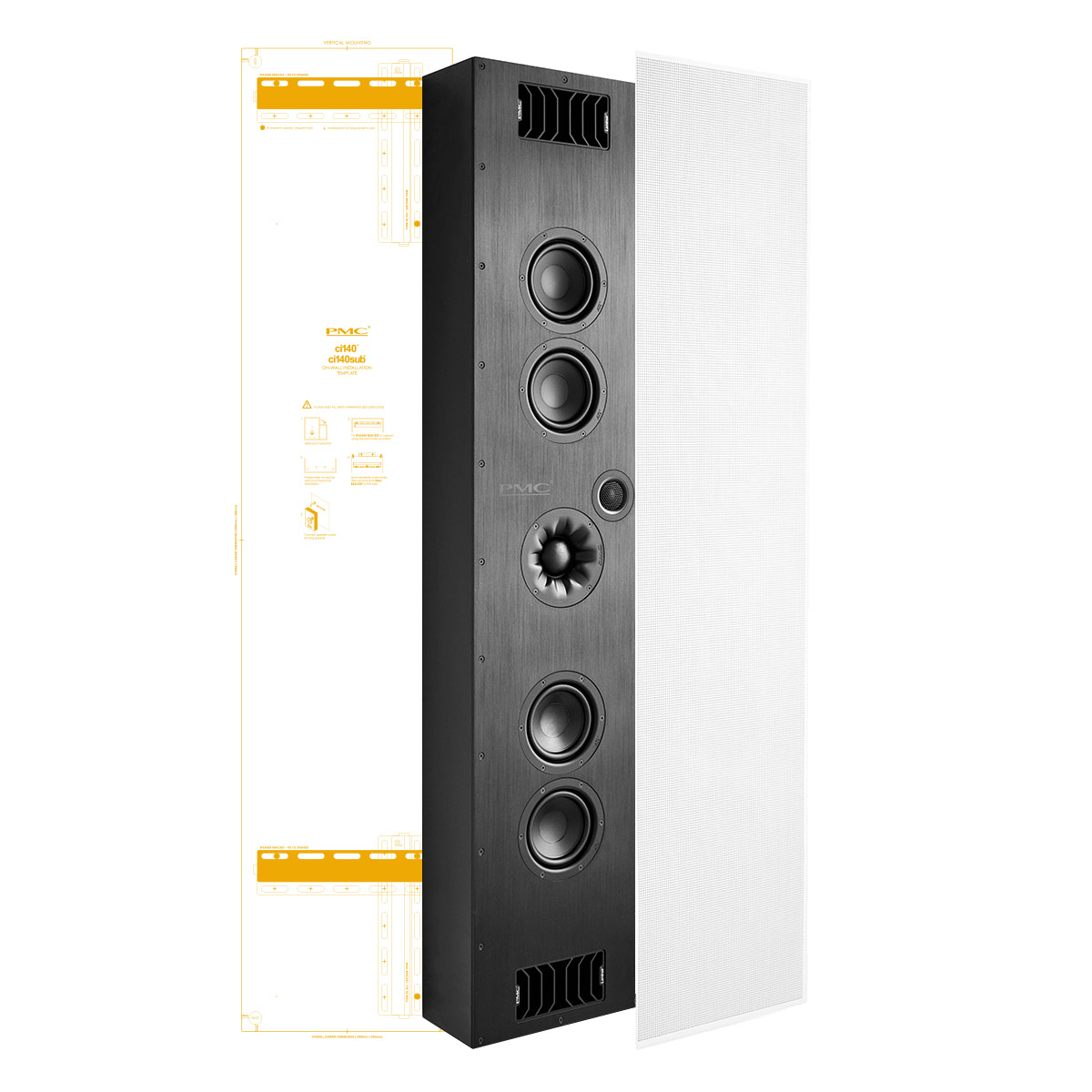

Despite its commanding 1.4-meter (55-inch) height, the ci140 maintains a shallow 103mm (4-inch) depth, allowing it to be installed into standard wall cavities without structural modifications. Installation is streamlined by the patented Qikfire™ mounting system, which uses spring-loaded clamps to secure the speaker in seconds.

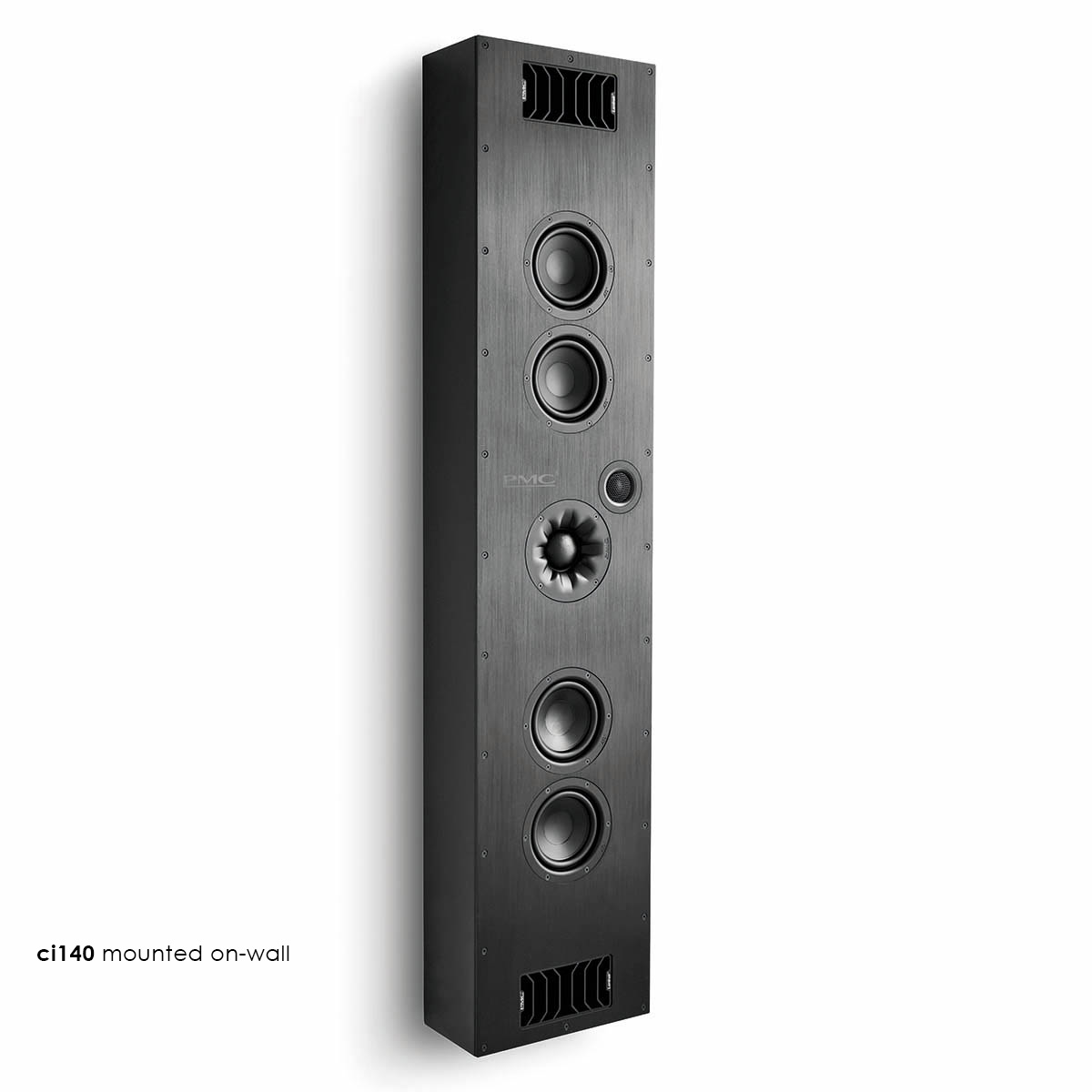

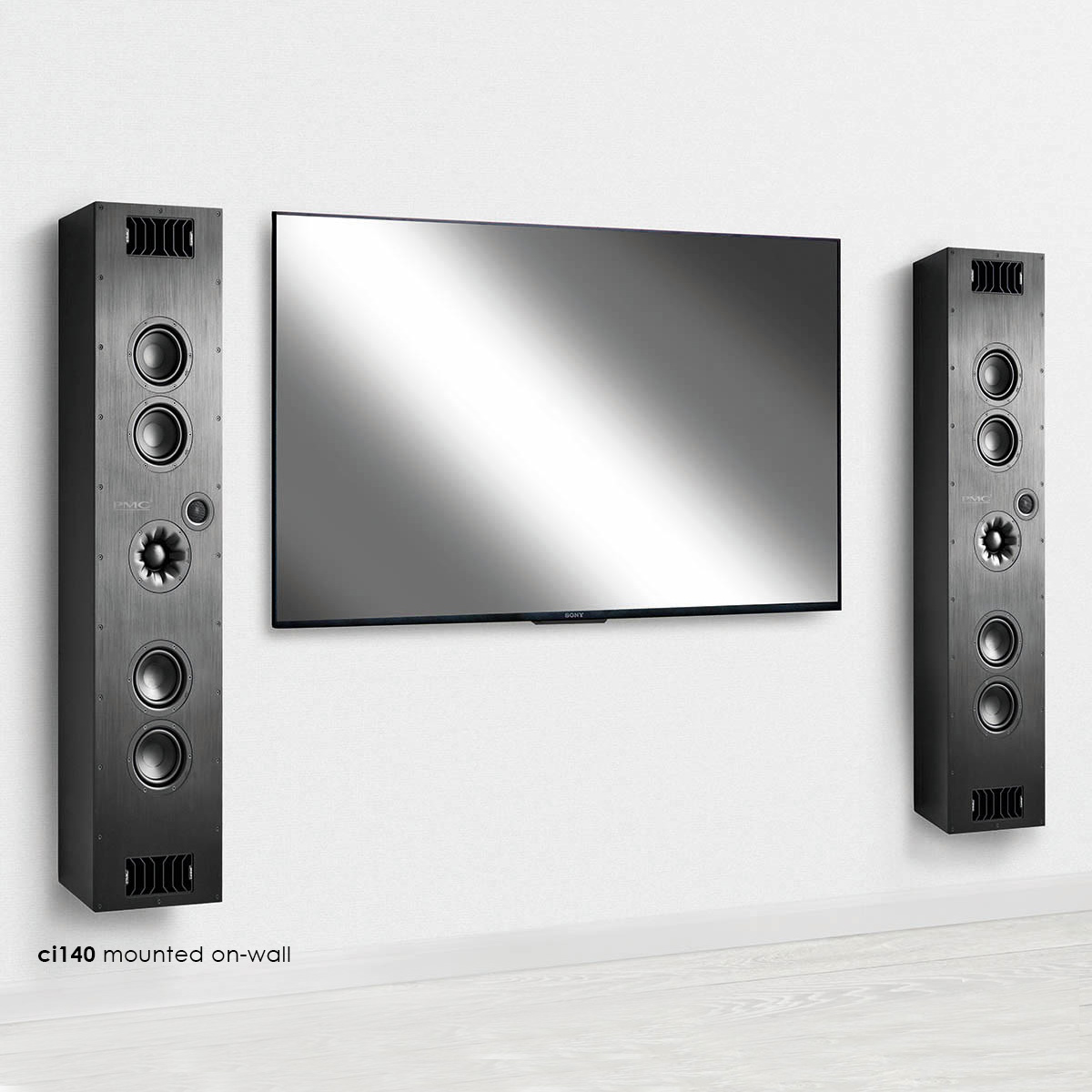

The ci140 is finished in a professional matte “Studio Black” and includes a bezel-less, micro-perforated magnetic grille. This white grille is fully paintable, allowing the speaker to blend into the room’s design while its performance remains undeniable. For installations where in-wall mounting is not possible, the optional On-Wall Kit (OWK) allows the ci140 to be mounted as a sleek, low-profile monitor.
Features & Specifications
| Attribute | Detail |
|---|---|
| Type | 3-way passive in-wall or on-wall reference monitor |
| Frequency Response | 32Hz – 25kHz (-3dB) |
| Sensitivity | 93dB SPL (2.83V @ 1m) |
| Peak SPL | 115dB SPL |
| Nominal Impedance | 4 Ohm |
| Recommended Amp Power | 60 – 300 W |
| Effective ATL™ Length | 2.3m (7.5ft) |
| Crossover Frequency | 500Hz, 3.8kHz |
| Input Connectors | 1 pair 4mm sockets (binding posts) |
Drive Units
- Low Frequency (LF): 4 x 133mm (5.25”) Natural Fibre LT™ long-throw drivers
- Mid Frequency (MF): 1 x 50mm (2”) PMC55 soft-dome midrange
- High Frequency (HF): 1 x 27mm (1”) Soft Dome tweeter with custom waveguide
Physical Attributes & Installation
| Attribute | Detail |
|---|---|
| Dimensions (H x W x D) | 1400mm (55.1″) H x 300mm (11.8″) W x 103mm (4″) D |
| Weight | 25kg (55lbs) unboxed with grille |
| Standard Finish | ci series black cabinet with white or black paintable magnetic grille |
| Mounting Depth | 103mm (4″) |
| Mounting Systems | Qikfire™ spring-loaded in-wall system; supplied interlocking on-wall bracket |
| Optional Accessories | OWK (On-Wall Kit in black or white), PMK (Pre-Mount Kit) |
