Chord Company English Electric EE1 High-Performance Network Noise Isolator

$558.00

In Stock
Product is on hand and ready for purchase!

  • Free Shipping

-

Categories: , , SKU: EE1_Noise_Iso

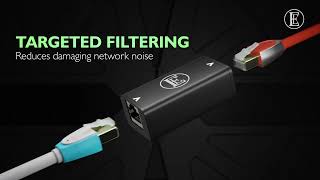

The EE1 network noise isolator is designed to sit discreetly between ethernet cables within a streaming audio/video system and can drastically reduce noise whilst allowing digital signals to pass unhindered.

Digital signals are robust but are often accompanied by a degree of noise, usually transferred from home network devices.

The EE1, like the EE 8Switch and 16Switch, continues our efforts to prevent noise from affecting music/image data and system performance.

Installation options

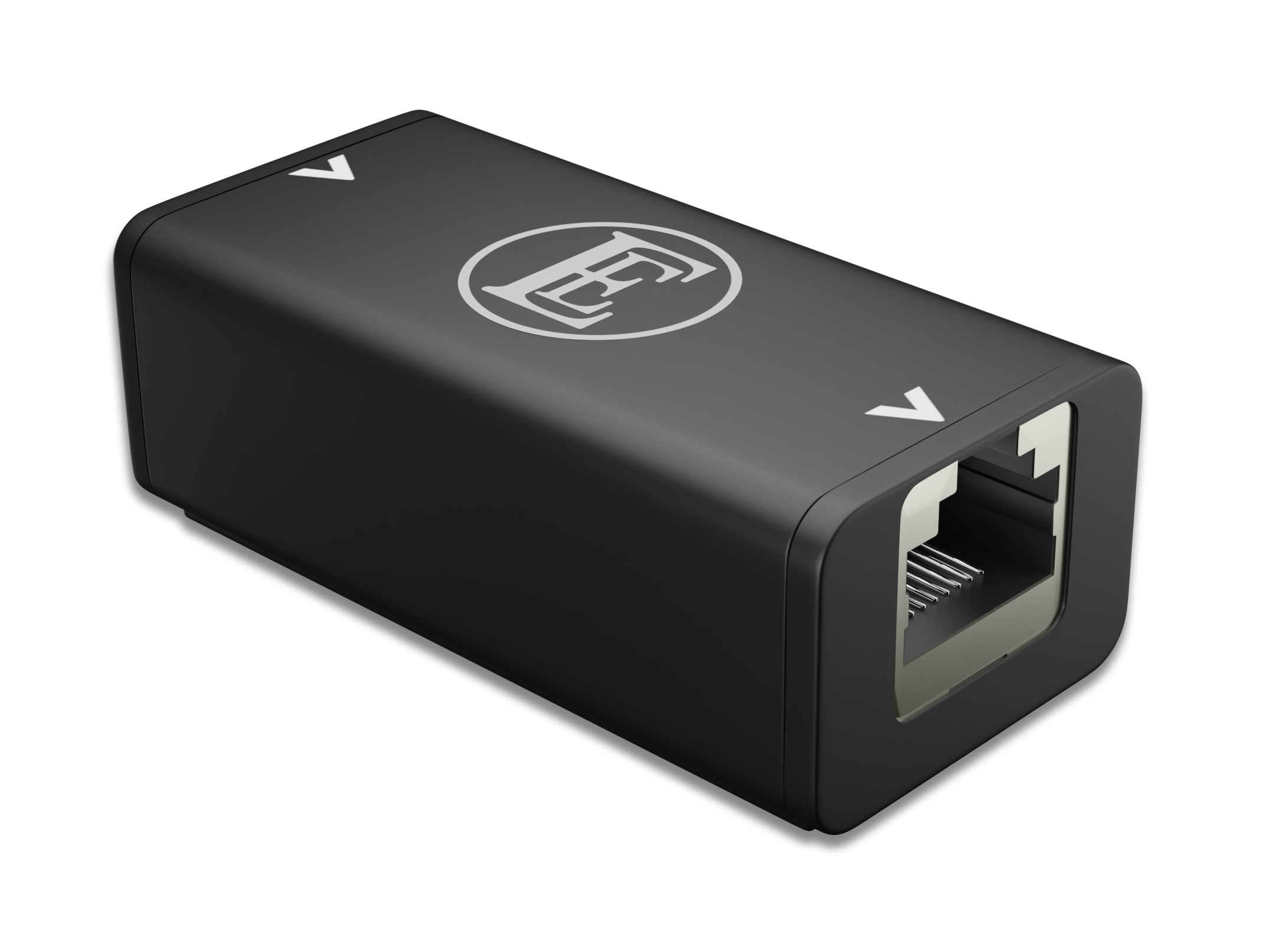

For optimum results please ensure the > direction markings on the EE1 unit follow the direction of the music/data signal.



If using cables of varying quality we suggest connecting the superior model/s as far along the signal path as possible, between EE1 and the server/streamer (system type 1) or between EE1 and streamer (system type 2).



If further noise-reduction/enhancement is desired, a second EE1 can be installed between router and network switch.



Installing the EE1 will require an additional ethernet cable.

We recommend using Chord Company streaming (Ethernet) cables throughout your streaming audio system.







Features & Specifications

Electrical and functional specifications

    • Type: Ethernet filter/network isolator
    • Connections: One RJ45 Ethernet input and one RJ45 Ethernet output
    • Isolation: Galvanic isolation with electrically isolated input and output to block noise
    • Filtering: Passively converts unwanted noise to heat, primarily targeting common-mode noise
    • Signal integrity: Tuned to maintain a 100 ohm differential trace impedance with a low insertion loss of around 0.2dB
    • Noise Rejection: Features a Common Mode Rejection Ratio (CMRR) of – 50dB/2MHz50 dB / 2 MHz falling to approximately –
      15dB/200MHz15 dB / 200 MHz and can suppress common-mode noise by up to 15dB15 dB at lower frequencies

  • Physical specifications

    • Dimensions (HWD):  23mm×32mm×65mm

    • Weight:  47.5g
    • Color: Black
    • Housing: Black alloy case

Included accessories
  • Each EE1 includes a 0.75m (or 0.5 m) Chord Company C-Stream network cable
  • It is supplied with a warranty period of 2 years
