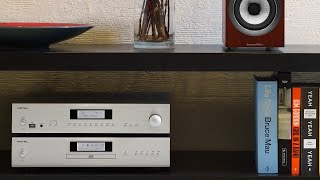

ROTEL A12 INTEGRATED AMPLIFIER

$1,499.00 $1,269.00

Features & Specifications

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17″ × 3.6″ × 13.5″

FRONT PANEL HEIGHT
80mm (3.15″)

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
230W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
8kg (17.6lbs.)

BTU RATING
(4Ω, 1/8th power)517 BTU/h

CONTINUOUS POWER OUTPUT
60W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz ±0.5dB
Digital Inputs: 10Hz – 80kHz ±3dB
Phono Input: 20Hz – 15kHz ±0.5dB

S/N RATIO ( “A” Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
220

SPEAKER IMPEDANCE
4Ω minimum

INPUT SENSITIVITY
Line Level Inputs: 200mV
Digital Inputs: 0dBfs
Phono Input (MM): 3mV

INPUT IMPEDANCE
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV

PREOUT LEVEL
1V

OUTPUT IMPEDANCE
470Ω

TONE CONTROLS
±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 24/192)
