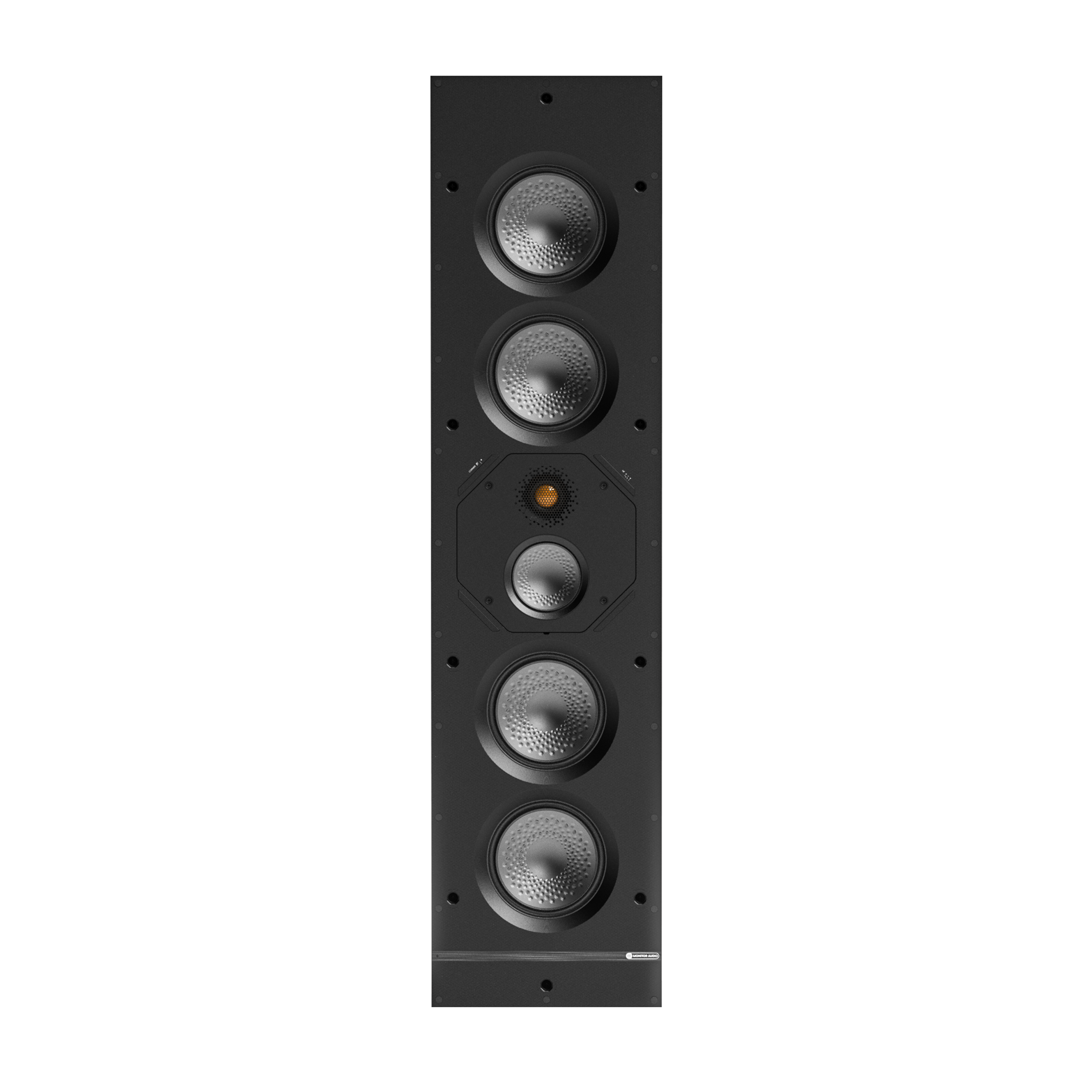

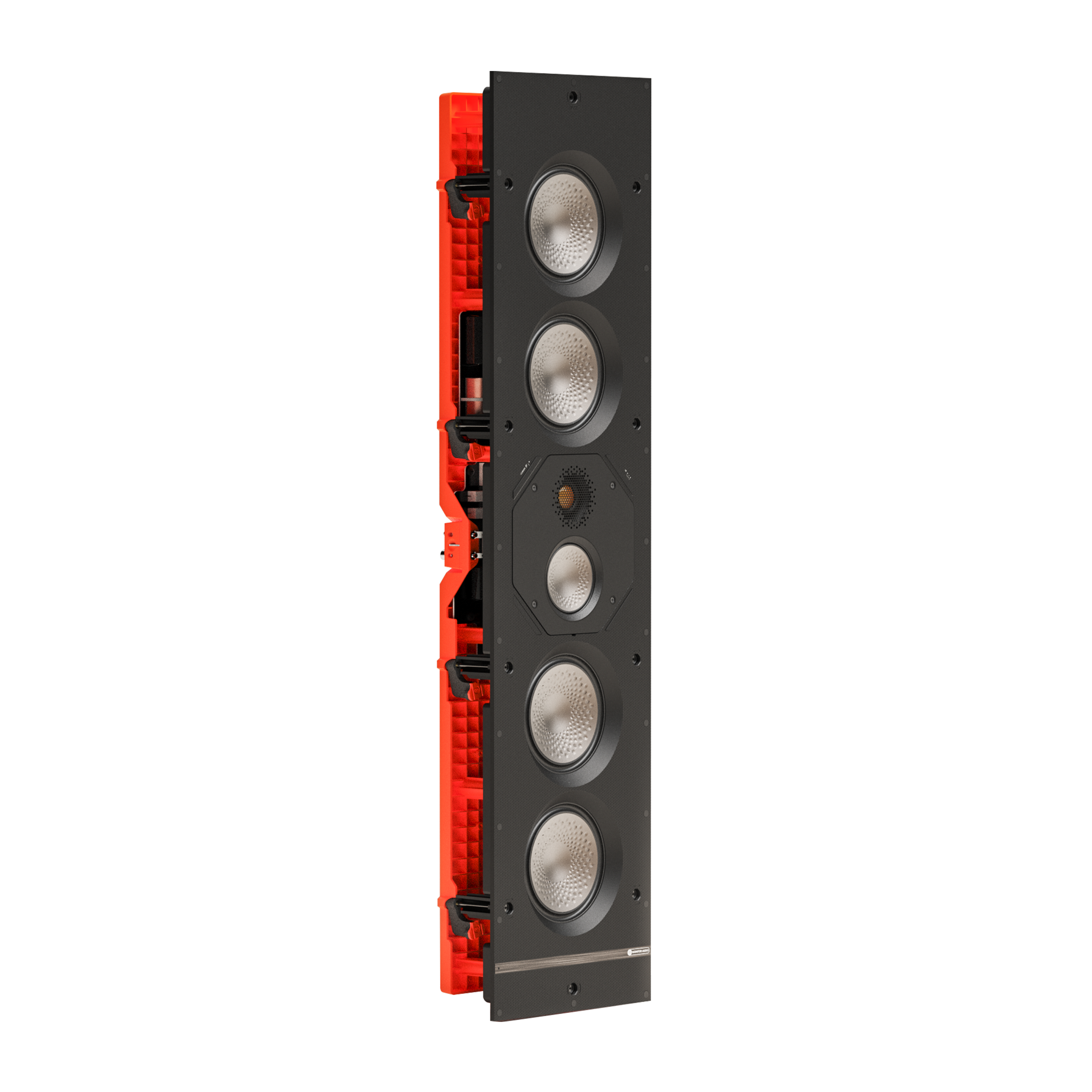

Monitor Audio W2L Tier 2 Creator Series In-Wall Architectural Speakers
$2,400.00
-
Free Shipping
-
This large-sized Tier 2 in-wall loudspeaker is a three-way model featuring four RST II bass drivers, an RST II midrange driver, and a C-CAM tweeter. It has a cut-out dimension of 880 x 202 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for installations where pristine acoustic performance is required | Three-way design | 1 x 1″ C-CAM tweeter with UD Waveguide II for lifelike sound | 1 x 3″ RST II midrange driver | 4 x 5″ RST II bass drivers | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
Boundary EQs
All the Creator Series in-wall models perform exceptionally well in a variety of locations, including when close to secondary walls. However, as you move up through the tiers, the models feature enhanced technologies such as boundary correction and high- and mid-frequency cut/boost that allows them to be placed in trickier locations such as corners. Because sound performance shouldn’t be compromised by placement.
CP

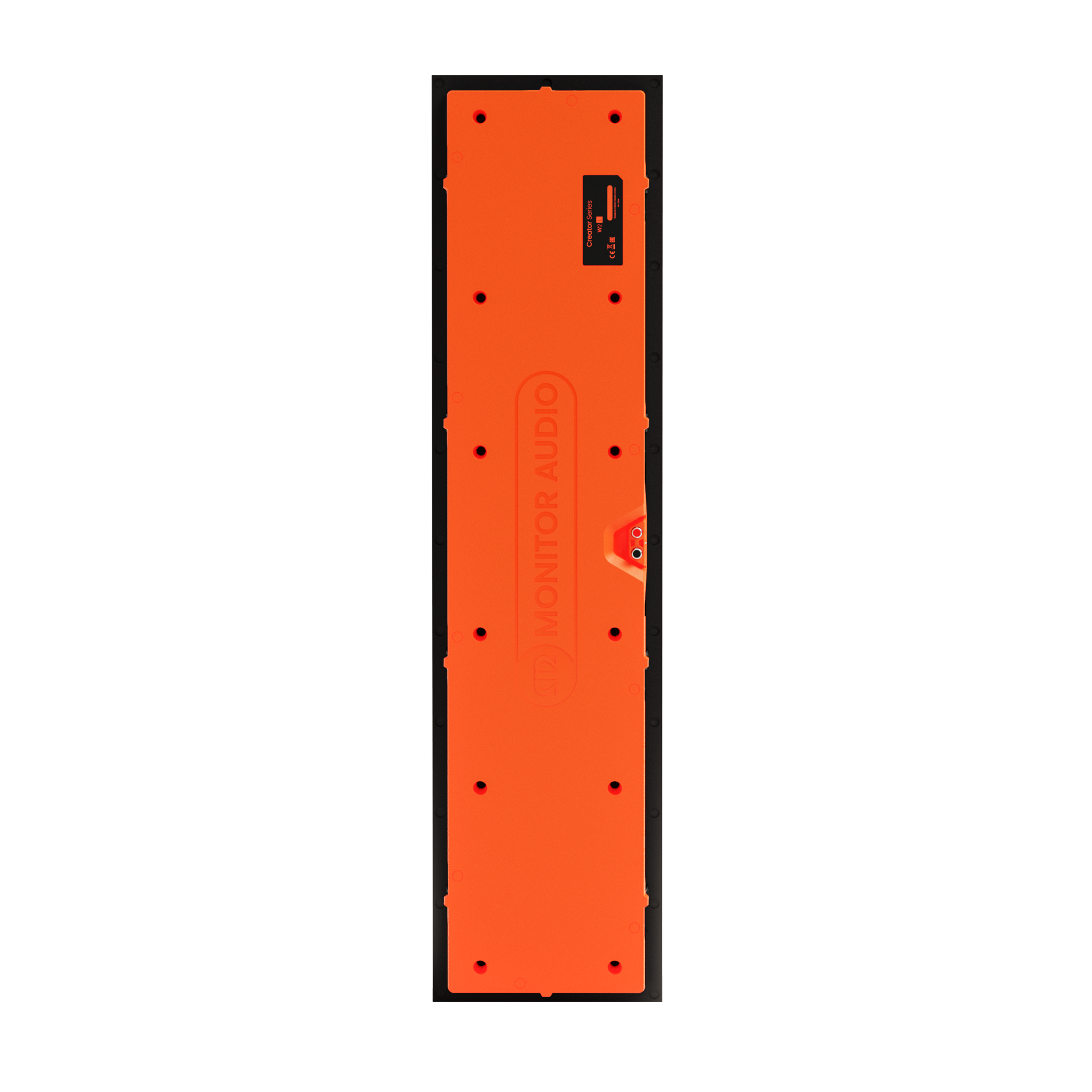

Controlled Performance (CP) models are fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30dB. This range guarantees excellent audio quality and versatility, and offers superior sound isolation between rooms and floors.
Features & Specifications
System Format
3–Way
Frequency Response, Installed (-6dB)
38 Hz – 35 kHz
Sensitivity (2.83Vrms@1m, Installed)
88 dB
Nominal Impedance
4 Ohms
Minimum Impedance (20Hz to 20kHz)
4.2 Ohms @ 1.1 kHz
Maximum Peak SPL (AES75, Z-weighted)
117 dB
Continuous Power Handling (CTA 426-B)
225 W
Recommended Amplifier Power(RMS, Music Signal)
110 – 450 W into 4 ohms
50 – 225 W into 8 ohms
Bass Alignment
Sealed
Crossover Frequency
LF/HF: 700 kHz
MF/HF: 3 kHz
Drive Unit Complement
4 x 5″ (127 mm) RST II bass driver
1 x 3″ (76 mm) RST II midrange driver
1 x 1″ (25 mm) C-CAM tweeter
Mounting Depth
85 mm (33/8“)
Cutout L x W
880 x 202 mm (345/8 x 715/16“)
Pre-Construction Bracket
WL-B
External Dimensions with all accessories fitted (H x W x D)
909 x 231 x 93 mm (3513/16 x 91/16 x 35/8“)
Weight (each)
With grille 7.77 kg (17 lb 2 oz)
Without grille 6.92 kg (15 lb 4 oz)
Cabinet Finish
Matte black & Orange & Bronze
Sold As
Single Unit
Warranty
Lifetime
