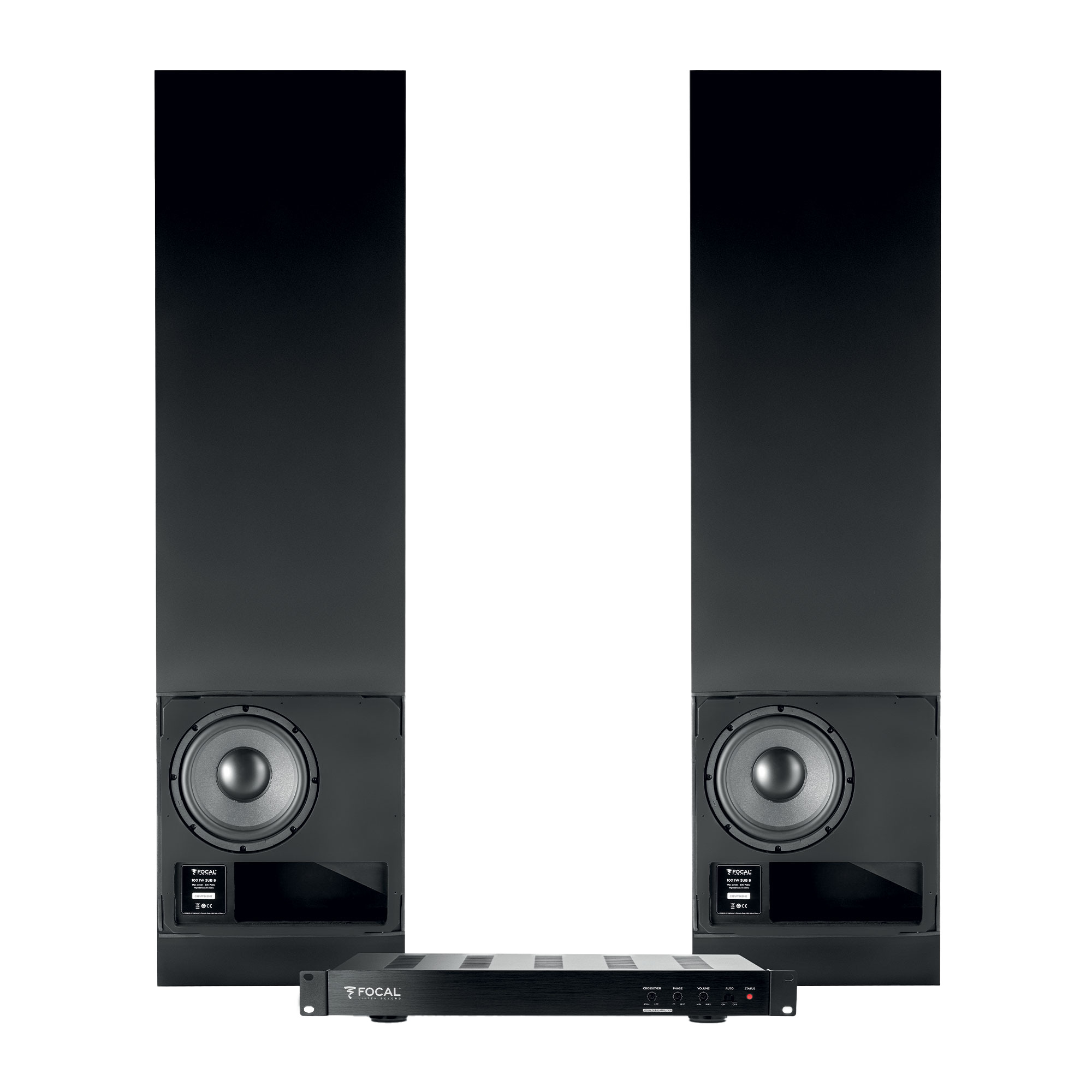

Focal 100 IWSUB8 HIGH POWER PASSIVE BASS-REFLEX SUBWOOFER
$779.00 – $1,899.00
-
Free Shipping
SENSATIONAL BASS
HIGH POWER PASSIVE BASS-REFLEX SUBWOOFER
Complete your 100 Series audio/video system with the subwoofer 100 IWSUB8. Including an 8″ Polyglass speaker driver and a front vent with a streamlined inner frame to guarantee no-noise operation, this passive bass-reflex subwoofer can be installed during pre-construction of the walls using 16″ OC joists. With a shallow in-wall depth (33/8″), a high-quality bass reproduction and covered with a low profile magnetic grille which can be painted, it is as high-performance as it is discreet!
In a bid to design the very best products and combinations of audio solutions for create an unique ambiance, Focal has developed a dedicated easy-install amplifier specially tailored for this subwoofer: 100 IWSUB8 Amplifier.
Features & Specifications
100 IWSUB8 is a high power passive bass-reflex subwoofer designed for 16″ OC studs in-wall installation. This is an ideal
complement to an audio-video installation based on Focal 100 Series products. This subwoofer is intended to be powered
by 100 IWSUB8 Amplifier. Up to two 100 IWSUB8 subwoofers can be connected in parallel to this amplifier.
Key points
• Bass-reflex subwoofer with 30Hz low-cut frequency.
• Low depth fitting 16″ OC studs in-wall installation.
• Nominal impedance of 8 ohms, able to be
connected by pairs with 100 IWSUB8 Amplifier
Type Passive subwoofer
Speakers 8″ (21cm) Polyglass Woofer
Sensitivity (2.83V/1m) 89 dB
Bandwith (+/-3dB) 34-140Hz
Cut-off frequency (-6dB) 30Hz
Nominal impedance 8Ώ
Recommended amp power Max 200W / 4Ώ
Dimensions (WxDxH) 137/8 x 37/8 x 513/16″ (352 x 98 x 1,300mm)
Cut-out dimensions (WxH) 137/8 x 513/16″ (352 x 1,300mm)
Depth from wall 33/8″ (86mm)
Net weight 32.3lbs (14.6kg)
