Accuphase DP-750 PRECISION MDSD SA-CD PLAYER
The fabulous DP-750 is the latest incarnation of the Accupase’s 7XX series flagship single box SA-CD Player. Do not let the understated looks of the front panel deceive you, under the wood grain case this machine is packed with precision digital engineering that Accuphase is famous for. If you need convincing, try picking one up.

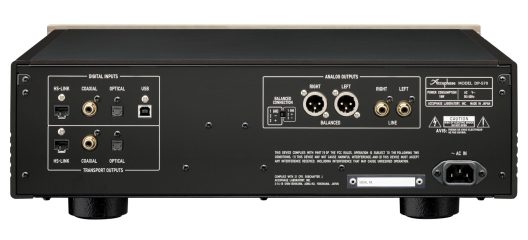

Accuphase have combined the convenience of a single chassis player with the versatility of a separate Transport and Digital Processor (DAC). Achieved by equiping the back panel with all the neccessary inputs and outputs including Accuphase’s own HS-LINK along with USB, optical and Coaxial inputs. Analogue signals are catered for with both Balanced (XLR) and single ended outputs.
Silky smooth tray operation, substantial remote, wood grain case and above all superb performance, makes this player truly a high end, very desirable dream machine!

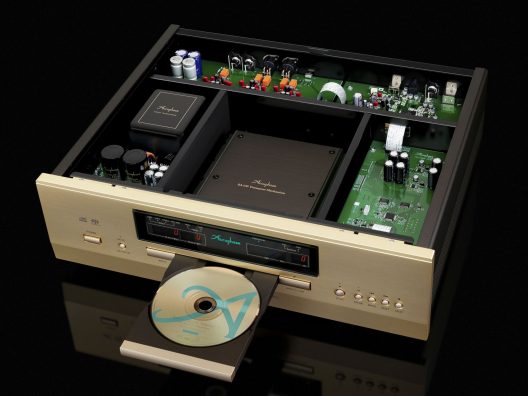

Quiet and ultra-smooth disc loading mechanism combined with a high rigidity, high precision SA-CD/CD drive extracts the full scope of the recorded information. The innovative MDSD (Multiple Double Speed DSD) D/A converter comprises eight MDS++ devices driven in parallel and a moving average filter to recreate an analog signal of stunning purity. The versatile array of transport outputs and digital inputs enables connection of a voicing equalizer or other equipment in the digital domain. Harnessing the latest technology in a masterful ensemble, the Accuphase DP-750 goes straight to the heart of the music.
Features & Specifications
- High-grade SA-CD/CD drive
- MDSD type D/A converter using eight parallel devices
- Support for playback of data discs (CD-R/-RW, DVD-R/-RW/+R/+RW)
- Direct Balanced Filter with separate line and balanced signal paths
- HS-LINK and USB digital interfaces
- Transport outputs and digital inputs allow insertion of DG-58 into signal path for sound field correction
- Phase selector for balanced outputs
- Numeric indication of sampling frequency and quantization bits
Compatible Disc Formats: 2-channel Super Audio CD, CD, DSD disc DVD-R/-RW/+R/+RW (DSF file format), Data disc CD-R/-RW, DVD-R/-RW/+R/+RW (Supported formats: WAV, FLAC, DSF, DSDIFF)
Data Read Principle: Non-contact optical pickup
Laser Diode Wavelength: SA-CD-655 nm, CD-790 nm
D/A Converter: CD playback and external input (PCM) – 8 MDS++ type, SA-CD playback and external input (DSD) – 8 MDSD type
Frequency Response: 0.5 to 50,000 Hz +0, –3.0 dB
THD + Noise: 0.0005% (20 to 20,000 Hz)
Signal-to-Noise Ratio: 120 dB
Dynamic Range: 117 dB
Channel Separation: 118 dB (20 to 20,000 Hz)
Output Voltage: BALANCED – 2.5 V 50 ohms, balanced XLR type, LINE – 2.5 V 50 ohms, RCA phono jack
Output Level Control: 0 dB to –80 dB in 1-dB steps (digital)
Power Requirements: 230 V AC, 50/60 Hz
Power Consumption: 26 W
Maximum Dimensions: Width 477 mm ( 18.8″) Height 156 mm (6.1″) Depth 394 mm ( 15.5″)
Weight: 28.2 kg (62.2 lbs) net, 35.0 kg (77.2 lbs) in shipping carton
