Acoustic Solid – Solid Brake Turntable
Price range: $8,810.00 through $12,465.00
-
Free Shipping
-
For music lovers who enjoy the unadulterated analog sound experience of the record, the turntable is more than just a technical playback device — it has a high value in life and, together with the record collection, often forms the centerpiece of the personal living environment. With their elegant and unique design, Acoustic Solid turntables are always an eye-catcher. For vinyl enthusiasts with highly individual demands, we are also happy to develop custom-made unique pieces. As a manufactory, we love creative challenges and develop exclusive special solutions that leave nothing to be desired in terms of technology, sound, and appearance.
The prerequisite for the high tonal quality of the Solid Brake is that the motorcycle brake disc itself is manufactured with the highest precision and thus meets the requirements for an absolutely round synchronisation of the turntable. After all, acoustic solid goes without saying that all special versions are not just about attractive show effects: best-in-class sound always has priority.

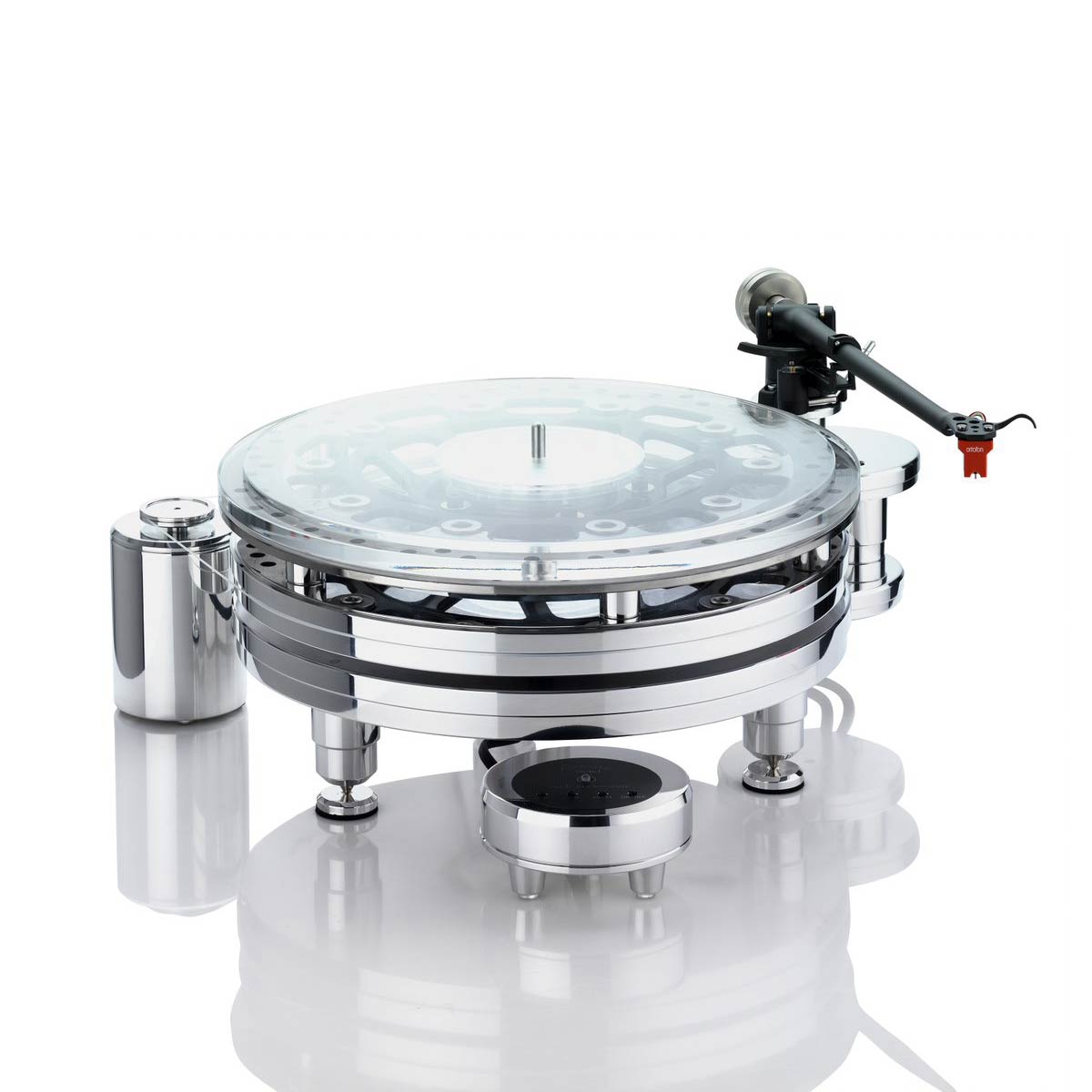

In the Solid Brake, the turntable consists of the brass-coloured stainless steel brake disc of a Triumph Tiger motorcycle, which was installed under transparent acrylic discs. In combination with the highly polished aluminium, the dreher is an exclusive design statement in which not only biker hearts immediately get into full swing.
Features & Specifications
| Construction principle | Acoustically optimized drive shape Base carrier plate 50 mm and feet made of all-aluminum Resonance optimized and decoupled via special Teflon discs and silicone mixture damper Height adjustment via threaded spikes, decoupled via special felt feet |
|---|---|
| Range | Convenient speed switching at the touch of a button 33.3, 45 rpm fine adjustment + or – possible at any time at the touch of a button |
| Bearing | Ground stainless steel axle cast liner and cast bearing bottom bottom again dampened and decoupled with Teflon discs Special resonance-optimized material with polished ceramic ball |
| Drive | Berger Lahr Synchronous Motor with Belt Drive Belt made of Nylon Silicone Mixture Microprocessor Controlled Electronics |
| Turntable | Made of all aluminium 6 kg turntable thickness 30 mm CNC precision turned and polished by hand on it stainless steel brake disc 2kg |
| Turntable pad | 10 mm thick Plexiglas plate 1.4 kg on top 4 mm Plexiglas support |
| Synchronization | 0.08 % (measured with Ortofon measuring computer) |
| Electrical/Power Supply | 240 Volt 47-63 Herz 0.4 Amper Output 32 Volt 0.46 Amper maximum Switching power supply with IEC plug cable |
| Weight | 21.5 kg weight without tonearm |
| Weight | 15 kg |
|---|---|
| Size | 31 × 31 × 26 cm |
| Material | High-gloss polished aluminium |
| Scope of delivery | 1 turntable Solid Brake |
| Control | Microcontroller M2 with quartz generator and fine adjustment plug and play |
