Fiio Q15 Portable Desktop/Portable DAC & Headphone Amp

DAC and Headphone Amplifier

Desktop/portable dual power supply modes | 1600mW high output power Bluetooth/USB/coaxial decoding | High-end QCC5125+XU316 | Global PEQ

AKM flagship DAC combo AK4191EQ+AK4499EX | Full-color IPS display

5-level audio circuit | Comprehensive protection

*Pictures are for reference only. The actual product may vary.

Selling points

Portable desktop-grade machine —— Q15

The Q15 features a new desktop mode, sporting a separate Type-C power connector for it. When the Q15 is connected to the PD power adapter, the Q15 will be powered externally completely bypassing the battery, allowing for a desktop-like experience even on the go.

1600mW of astonishing power   Rivaling desktop amps

When put in Desktop Mode, the Q15 under balanced output is capable of putting out 1600MW in enhanced over-ear headphone mode, which is more than enough to easily drive various IEMs and full-size headphones.

USB/Bluetooth/coaxial decoding

Useful everywhere

USB:

The Q15 packs USB DAC, Bluetooth, coaxial decoding and other modes all into one device, making it easier for you to connect various kinds of devices for different usage scenarios.

Bluetooth:

Coaxial:

AKM flagship DAC combo   AK4191EQ+AK4499EX

–  the AK4191EQ+AK4499EX. When working in tandem with the newly developed “DWA Routing Technology”,

*Above parameters result from actual tests.

Self-developed digital cores Stable and efficient operation

XMOS 16-core XU316

TI Cortex M4 processor

Dual audio crystal oscillators, asynchronous/ self-adaptive dual mode management

Featuring digital components on the same level as those of the FIIO Q7, the Q15 relies on the ARM processor to realize USB/coaxial/Bluetooth decoding in one, capable of processingdigital audio signals with low latency and high efficiency.Featuring digital components on the same level as those of the FIIO Q7, the Q15 relies on the ARM processor to realize USB/coaxial/Bluetooth decoding in one, capable of processingdigital audio signals with low latency and high efficiency.

Supports 768kHz/32bit PCM, DSD512 and MQA full decoding

Ensures stable and efficient operation of various systems

Adapt to various sound sources and sampling rates accurately and stably

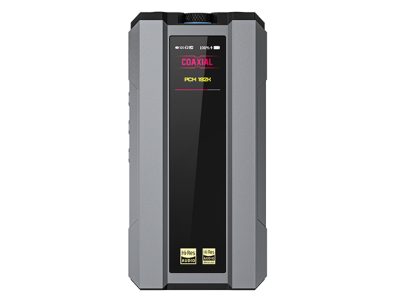

Full-color IPS display Visually pleasant control

The full-color IPS display makes it easier for you to see the current status of the device, such as the current sampling rate, volume, gain, and other information. Helping you to both adjust the volume and easily navigate through the settings is an intuitive volume knob.

Phone mode switch

With just one touch

FIIO engineers implemented a “Phone Mode” switch to make the Q15 better suited for use with phones. Turn on Phone Mode* and the Q15 will be powered by the built-in battery, not consuming the phone’s battery.

*If you need to connect to a computer, turn off Phone Mode.

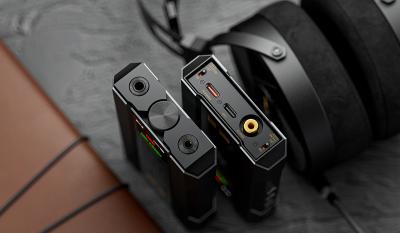

RCA coaxial connector

Complete audio signal transmission

Thanks to the carefully designed internals, the Q15 also comes with a coaxial input. This allows the Q15 to be directly connected to digital streamers and CD players through ordinary coaxial cables, avoiding any losses from not using a direct connection.

Perfect size

Perfect feel

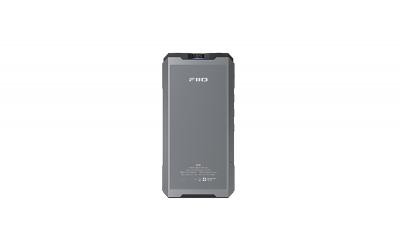

It is the first time that the Q15 uses AG glass for its back panel, which is anti-scratch and anti-fingerprint with a delicate touch. Coupling with the golden size ratio of 18:9 makes it comfortable to use both when being handheld and when bundled with other portable devices. Whether you are simply on the go or on a business trip, you can easily remain in control of your high-quality sound.

15-way digital-analog power supply

Extensive energy storage

Digital Audio Power Supply

Inside the Q15 is a 15-way digital-analog power supply, with power supply systems for the digital portion, analog portion, headphone amps, etc. 21 low-noise LDOs are distributed for accurate regulation, and 35 low-resistance tantalum capacitors distributed for abundant energy reserves.

DAC and LPF Power Supply

Headphone Amp Power Supply

High-precision and low-noise

An expert in audio restoration

FIIO engineers specially selected 60 1‰ precision, low- temperature drift resistors, and 28 wide temperature range NPO capacitors for the Q15, allowing it to faithfully reproduce high-quality audio with the utmost fidelity even in the most demanding conditions.

Global PEQ Adjust to personal taste

The Q15 comes with 7 EQ presets and 3 customizable PEQ* presets. PEQ can be used in both Bluetooth mode* and USB DAC mode*. Through FIIO’s self-developed PEQ algorithm and user interface, you can choose the exact frequencies to be adjusted along with their gain levels and bandwidth – allowing you to fine-tune the sound to exactly the way you want it.

*The customizable PEQ and PEQ under coaxial input will be supported through subsequent firmware upgrades.

*The customizable PEQ will be supported through subsequent firmware upgrades.

*USB DAC PEQ supports 192kHz/24bit PCM.

*USB DAC EQ is handled by the XMOS chip. When turning on and off EQ in this mode, the USB connection will temporarily disconnect and automatically reconnect. Tap “play” to restore output.

Comprehensive protection Comprehensive peace of mind

FIIO engineers have implemented a multitude of hardware and software-controlled protection mechanisms, allowing you to enjoy great sound without worries.

Max volume limit, to avoid hearing damage; Durable high temperature resistant battery + dynamic charge and discharge temperature-based control+ charging protection + battery isolation, all work together to prolong battery durability; The over-heating, over-voltage, and DC protection mechanism allows the Q15 to stably output power by ensuring the audio circuit works properly and ensures the safety of the connected headphones.

Internally and externally crafted, all for your use

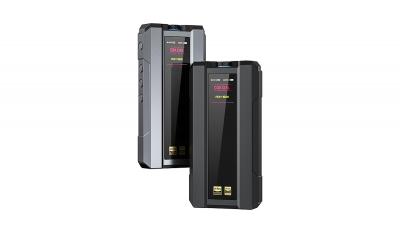

Two colors available

Black/Titanium gray, choose between two colors

Screen orientation change

Upside down or right-side up, it all works

With a versatile knob

The versatile knob achieves a variety of functions, volume adjusting input switching, menu settings, etc.

Digital and analog shielded partitions

The digital and analog portions of the audio circuit are separated and shielded from each other to reduce crosstalk between the two portions and to protect against external interference.

7 built-in filters

Experience subtle changes in the sound

Automatic power saving

Choose when the screen goes to sleep, helping to save power according to your usage habits

Supports app control

Control your device and adjust functions through the FIIO Control App
